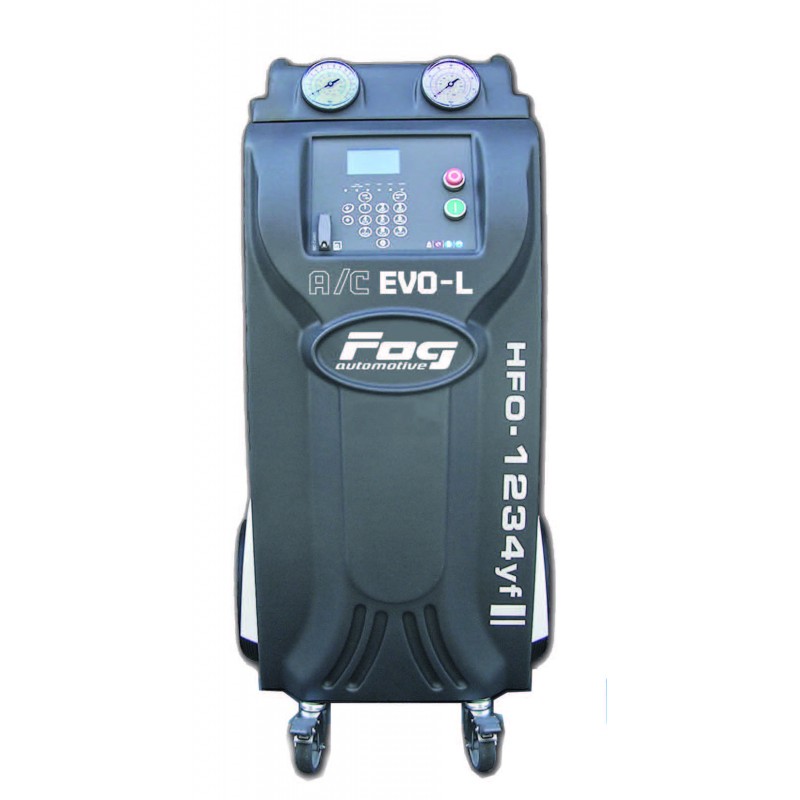

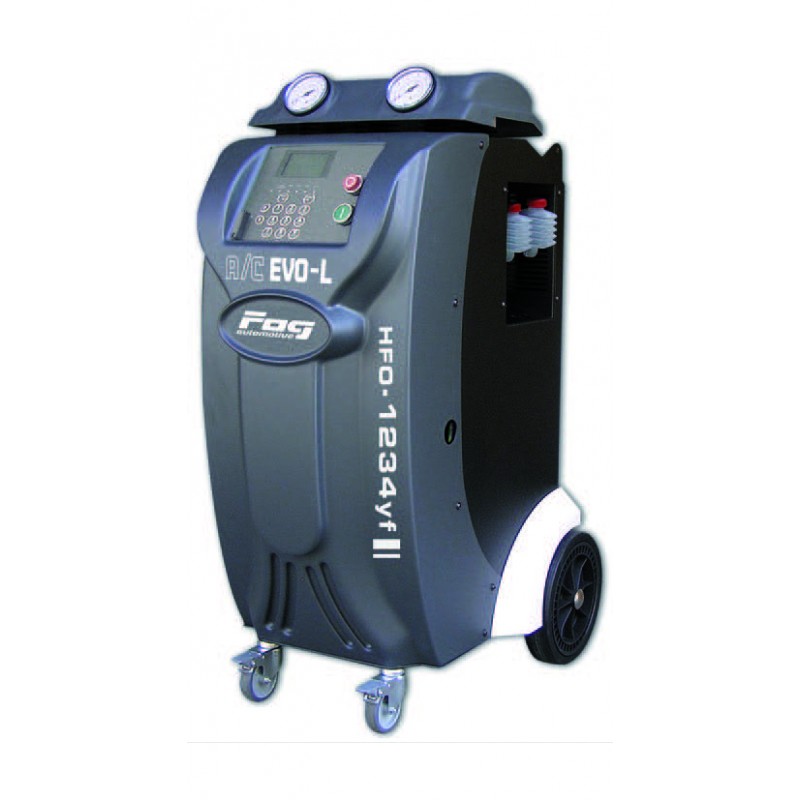

HFO-1234YF refill station - 3 scales
AC.EVO-L
Passenger Car Light Duty Vehicle Heavy Duty Vehicle
Super-automatic refill station for recovering, recycling and recharging refrigerant HFO-1234YF (3 scales)
R134A Stations
Automatic refill station for recovering, recycling and recharging refrigerant R134ARef. AC.NANO+
Automatic refill station for recovering, recycling and recharging refrigerant R134A
Ref. AC.CUBE 1.0
Standard equipment
- 1 power cord
- 1 x 2.5 m High Pressure hose
- 1 x 2.5 m Low Pressure hose
- 1 adapter for refilling the bottle
- 1 x 24-column thermal printer
Download
More info
TECHNICAL CHARACTERISTICS
- Functions: recovering, recycling, emptying used oil, checking tightness, refrigerant charging, injecting new oil, tracer charging, discharging non-condensables, refilling internal cylinders.
- Alphanumeric back-lit LCD display (16 characters on 4 lines).
- Digital control panel with electronic management to control all the processes.

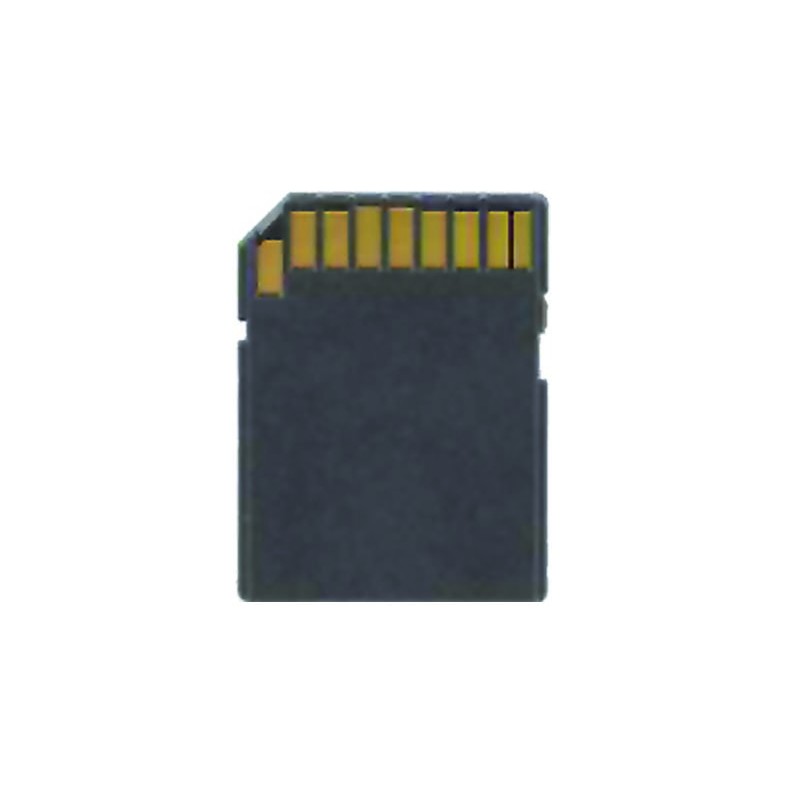

- Operations automatically archived on SD card.
- Built-in vehicle database on SD card.
- Remote assistance via the Internet network.
- Total counter for each cycle.
- Class 1.0 HP and LP pressure gauges with identification of operating ranges.
- Highly reliable LP and HP hoses, snap-fit coupler and manual opening for the HFO-1234YF.
- Mechanical locking for the bottle.
- Capacity of the HFO-1234YF bottle: 10 kg.
- Recovery capacity of the tank: 400 gr/min.
- Two-stage vacuum pump for better results.
- 3 electronic scales (new oil + tracer, used oil and gas: accuracy of +/- 1g).
- Heated belt.
- Filter/drier on the oil injection circuit to protect the oil from humidity in the injection tank.
- Electronic management of the internal ventilation in compliance with safety standards for flammable fluids.
Data sheet
Height | 1110 mm |
Width | 530 mm |
Depth | 600 mm |
Weight | 80 kg |
Power supply | 230 V / AC / 50 Hz |
Vehicle type | Passenger Car, Light Duty Vehicle, Heavy Duty Vehicle |
Flag | MadeForFog |
Bottle capacity | 10 kg |
Compressor | 12 cc |
Vacuum pump | Two-stage |
