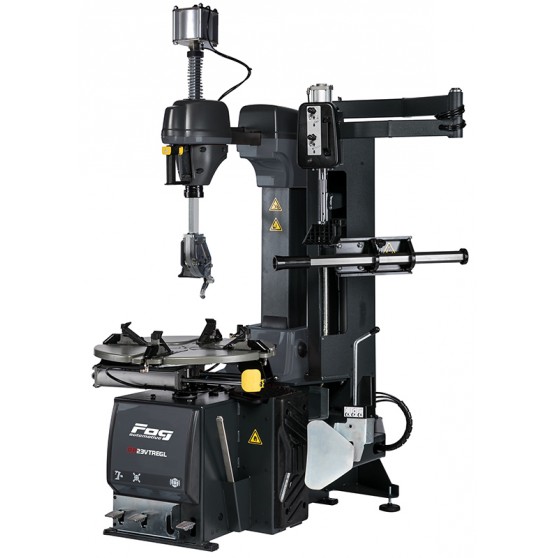

New Tyre changer with speed variator, additional arm, Ergo control and Leverless View larger

Tyre changer with speed variator, additional arm, Ergo control and Leverless

DP.23VTREGL

Passenger Car Light Duty Vehicle

Tyre changer equipped with speed variator, pre-assembled additional arm, Ergo control and Leverless

Other tyre changers with dimme

Tyre changer with speed dimmer, additional arm and Ergo control
Ref. DP.23VTREG

Tyre changer with speed variator, additional arm, Ergo control and Leverless
Ref. DP.33VTREGL

Other tyre changers

STANDARD RANGE - 1 & 2 SPEEDS

PRO RANGE WITH 2 SPEEDS

PRO RANGE WITH CHUCK

TRUCK RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 brush
  • 1 tyre changing lever
  • 1 set of protection for jaws, tool-heads and bead breaker
  • 1 MICHELIN inflating gun

Optional equipment

  • Tubeless inflation
  • Plastic tool-heads

Download

More info

TECHNICAL CHARACTERISTICS

  • Pneumatic tilting movement of the column and of the arm.
  • Speed variator.
  • Ergo Control system for easy bead breaking.
  • 24'' table with 2 pneumatic clamping jacks.
  • Simultaneous pneumatic horizontal vertical arm locking.
  • Pressure regulator with lubricator and water filter.
  • Extractable pedal group.
  • Plastic protection to prevent damage to aluminium rims.
  • Pre-assembled additional arm.
  • Leverless spout system.

Technical sheet

Data sheet

Rim diameterExt. 10" - 24'' / Int. 12'' - 28''
Rim width3" - 12.5"
Wheel diameterMax. 1200 mm
Height2 110 mm
Width1 380 mm
Depth1 840 mm
Weight418 kg
Power supply230 V 1 ph / 50 Hz / 12.5 A
Vehicle typePassenger Car, Light Duty Vehicle
Speed7.5 - 15 tr/min
Operating pressure8-10 bars
Rotation speed number1 speed

Download

Accessories
