New LCD Balancer with 2 manual rods View larger

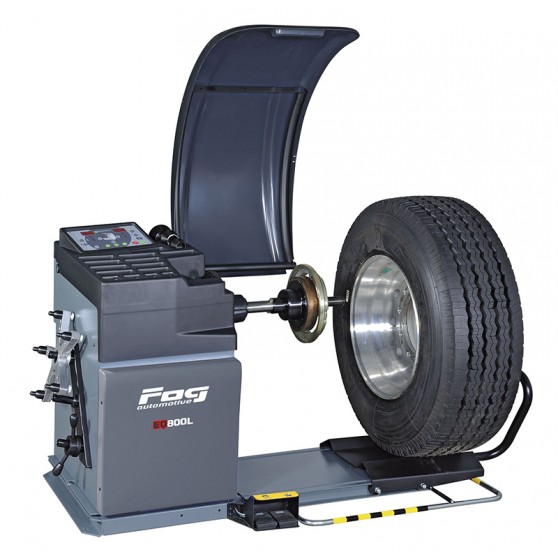

LCD Balancer with 2 manual rods

EQ.800L

Light Duty Vehicle Heavy Duty Vehicle

LCD Balancer with 2 manual rods for Heavy Duty Vehicle

The most complete on the market

Other available model for Heavy Duty Vehicle

VIDEO balancer with 2 manual rods
Ref. EQ.800V

Other available models for Passenger Car

LCD WHEEL BALANCERS

LCD AND LASER WHEEL BALANCERS

VIDEO WHEEL BALANCER

More info Technical sheet Data sheet

Standard equipment

  • Complete accessory set (conical plate, centering cones, centering star, etc.)
  • 1 weight clamp
  • 1 compass to measure the rim width
  • 1 calibration mass

Optional equipment

  • 1 automatic offset-diameter rod
  • 1 automatic width rod

Download

More info

TECHNICAL CHARACTERISTICS

  • EQ.800L electronic wheel balancers (equipped with a
    dual digital LED display) can operate on all types of tires (motorcycles, cars, utility, bus and heavy vehicles) thanks to their automatic double-speed mode.
  • Thanks to a large number of programs and fitted as standard with all the necessary accessories, the EQ.800x family is the most complete on the market.
  • A pneumatic wheel lift with a capacity of 160 kg makes it possible to center and fix the wheel perfectly without effort.

A MULTITUDE OF PROGRAMS

  • 2 standard programs, 9 ALU programs, 4 programs for heavy duty vehicles.
  • SPLIT MODE (masses hidden behind the sticks), OPT MODE (optimization of the masses on the rim), MODE 2 OPERATORS.

Technical sheet

Data sheet

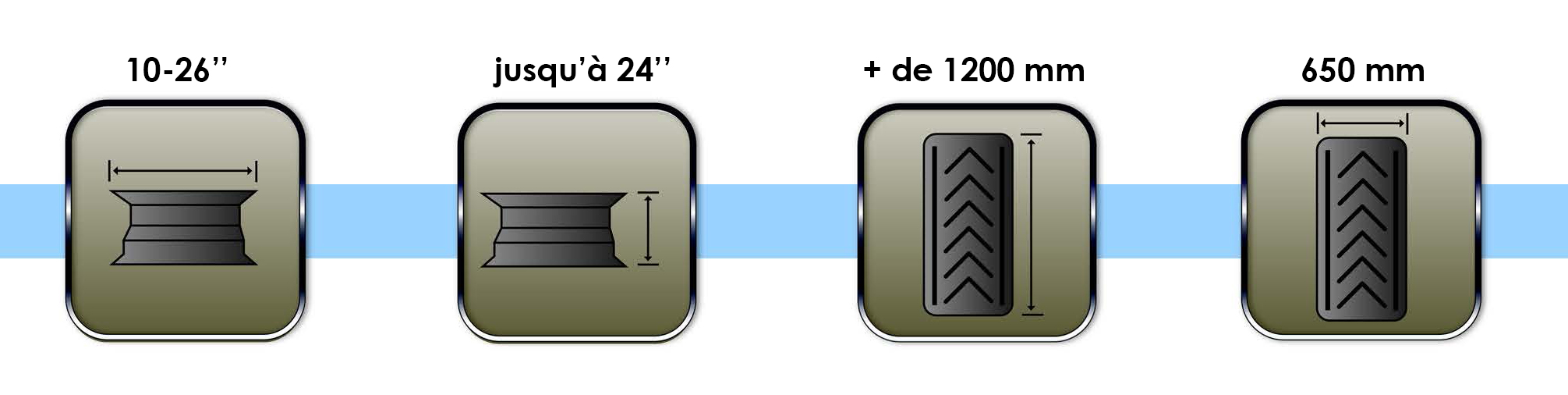

Rim diameter10" -26"
Rim widthup to 24"
Wheel width650 mm
Wheel diametermore than 1200 mm
Wheel weight70 kg / 160 kg
Height1950 mm
Width2000 mm
Depth1350 mm
Weight183 kg
Power supply230 V 50 Hz 0,5 kW
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Speed190 tr/mn (PC mode) 100 tr/mn (HDV mode)
Accuracy1 g
Operating pressure8-12 bars
