New AZUR 4T - 2 motors lift without base frame View larger

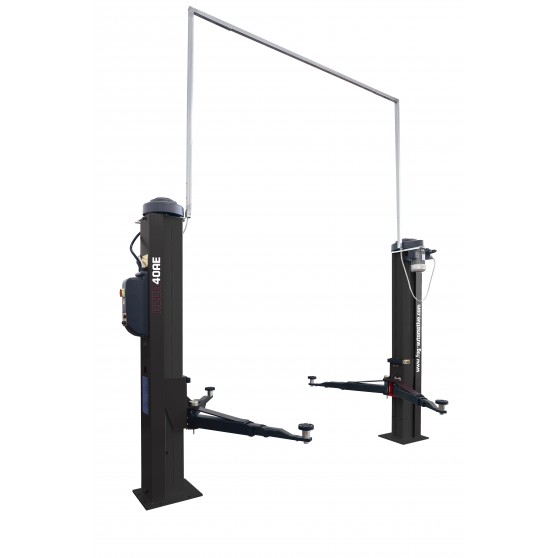

AZUR 4T - electro-mechanical lift without base frame

AZUR40AE

Passenger Car Light Duty Vehicle

2 motors and electro-mechanical 2 post lift (capacity 4T) without base frame

Other electro-mechanical lift references

2 POST LIFT WITHOUT BASE FRAME - 3T

2 POST LIFT WITH BASE FRAME - 3T

Other 2 post lifts

HYDRAULIC 2 POST LIFTS

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • No base frame between columns (arch-frame)
  • 2 motors with high starting torque
  • Protection stop for car door
  • Internal security in case of overheating
  • Lifting capacity: 4 000 kg
  • Min. lifting height for ultra-low vehicle: 103 mm
  • Great width between columns: 2 990 - 3 250 mm
  • Max. lifting height: 1 960 mm
  • Interchangeable symmetrical arms with 2 extensions: 730 - 1500 mm
  • Loaded lift lifting/lowering time: 55 / 55 secs
  • Height of the lift: 4 625 mm


Technical sheet

                 Front view                       Top view

Data sheet

Weight633 kg
Power supply230 V 3 ph / 50 Hz / 29 A - 400 V 3 ph / 50 Hz / 16,8 A
Power2 x 2,6 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity4 000 kg
Lifting/lowering time55 / 55 sec
Installation typeWithout base frame

Download
