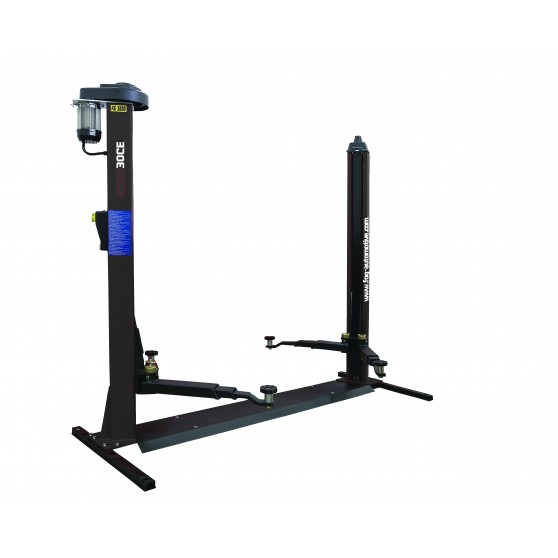

New AZUR 3T - 2 motors lift with base frame View larger

AZUR 3T - electro-mechanical lift with base frame

AZUR30CE

Passenger Car Light Duty Vehicle

2 motors and electro-mechanical 2 post lift (capacity 3T) with base frame

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Transmission by chain
  • Lifting capacity: 3 000 kg
  • Extra-flat connecting frame: 50 mm
  • Min. lifting height for ultra-low vehicle: 90 mm
  • Great width between columns: 2 460 mm
  • Max. lifting height: 1 950 mm
  • Interchangeable asymmetrical arms with 2 extensions:
    - short arms: 548 - 915 mm
    - long arms: 714 - 1 250 mm
  • Loaded lift lifting/lowering time: 55 / 55 secs
  • Height of the lift: 2 670 mm


Technical sheet

                 Front view                       Top view

Data sheet

Weight561 kg
Power supply230 V 3 ph / 50 Hz / 20,7 A - 400 V 3 ph / 50 Hz / 12,7 A
Power5,5 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity3000 kg
Lifting/lowering time55 / 55 sec
Installation typeWith base frame

Download
