New AZUR 3T - 2 motors lift without base frame View larger

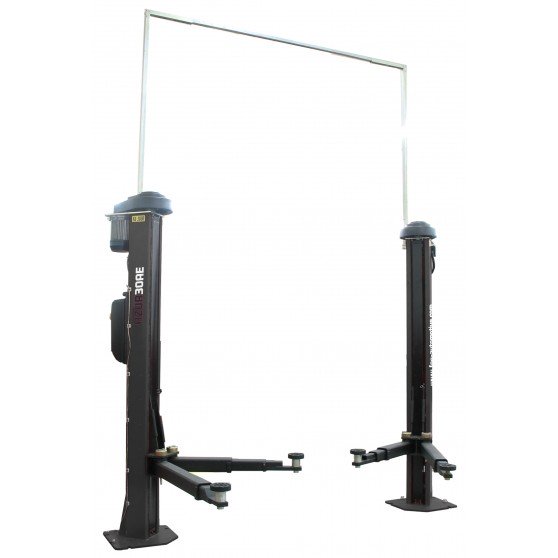

AZUR 3T - electro-mechanical lift without base frame

AZUR30AE

Passenger Car Light Duty Vehicle

2 motors and electro-mechanical 2 post lift (capacity 3T) without base frame

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 3 000 kg
  • Min. lifting height for ultra-low vehicle: 95 mm
  • Great width between columns: 2 410 - 3 050 mm
  • Max. lifting height: 1 945 mm
  • Interchangeable asymmetrical arms with 2 extensions:
    - short arms: 590 - 990 mm
    - long arms: 890 - 1 370 mm
  • Loaded lift lifting/lowering time: 65 / 65 secs
  • Height of the lift: 4 215 mm


Technical sheet

                 Front view                       Top view

Data sheet

Weight545 kg
Power supply230 V 3 ph / 50 Hz / 29,2 A - 400 V 3 ph / 50 Hz / 16,8 A
Power2 x 2,6 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity3000 kg
Lifting/lowering time65 / 65 sec
Installation typeWithout base frame

Download
