New Tyre changer with speed variator, additional arm, Ergo control and Leverless View larger

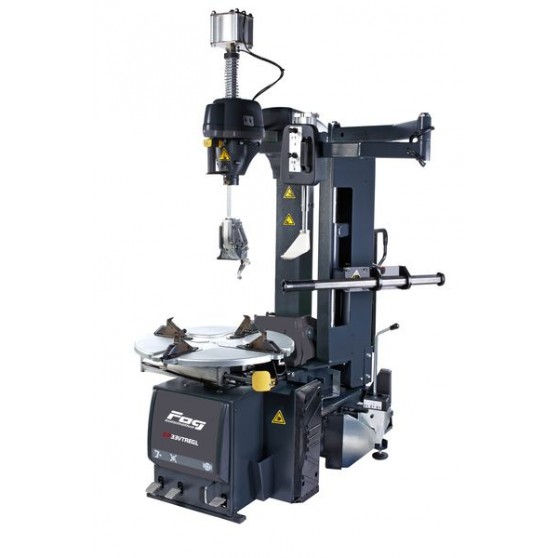

Tyre changer with speed variator, additional arm, Ergo control and Leverless

DP.33VTREGL

Passenger Car Light Duty Vehicle

Tyre changer equipped with speed variator, pre-assembled additional arm, Ergo control and Leverless

Other tyre changers with dimmer

Tyre changer with speed variator
Ref. DP.23V

Tyre changer with speed dimmer and Ergo control
Ref. DP.23VEG

Tyre changer with speed variator, additional arm and Ergo control
Ref. DP.23VTREG

Tyre changer with speed dimmer, additional arm, Ergo control and Leverless
Ref. DP.23VTREGL

Other tyre changers

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 brush
  • 1 tyre changing lever
  • 1 set of protection for jaws, tool-heads and bead breaker
  • 1 MICHELIN inflating gun

Optional equipment

  • Tubeless inflation
  • Plastic tool-heads

Download

More info

TECHNICAL CHARACTERISTICS

  • Pneumatic tilting movement of the column and of the arm.
  • Speed variator.
  • Leverless tool-head system.
  • Ergo Control system for easy bead breaking.
  • 28'' table with 2 pneumatic clamping jacks.
  • Simultaneous pneumatic horizontal vertical arm locking.
  • Pressure regulator with lubricator and water filter.
  • Extractable pedal group.
  • Plastic protection to prevent damage to aluminium rims.
  • Pre-assembled additional arm.

Technical sheet

Data sheet

Rim diameterExt. 12" - 28'' / Int. 13'' - 32''
Rim width3" - 15"
Wheel diameterMax. 1200 mm
Height2 350 mm
Width1 450 mm
Depth2 010 mm
Weight409 kg
Power supply230 V 1 ph / 50 Hz / 12.5 A
Vehicle typePassenger Car, Light Duty Vehicle
Speed7.5 - 15 tr/min
Operating pressure8-10 bars
Rotation speed number1 speed
