New Tyre changer with speed variator, additional arm and Ergo control View larger

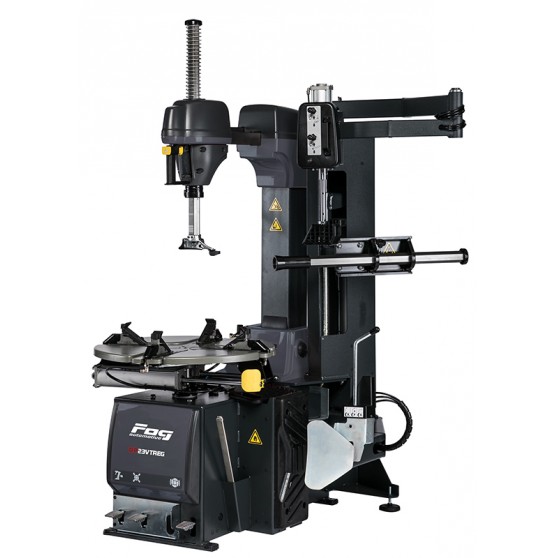

Tyre changer with speed variator, additional arm and Ergo control

DP.23VTREG

Passenger Car Light Duty Vehicle

Tyre changer equipped with speed variator, pre-assembled additional arm and Ergo control

Other tyre changers with dimmer

Tyre changer with speed dimmer, additional arm, Ergo control and Leverless
Ref. DP.23VTREGL

Tyre changer with speed variator, additional arm, Ergo control and Leverless
Ref. DP.33VTREGL

Other tyre changers

STANDARD RANGE - 1 & 2 SPEEDS

PRO RANGE WITH 2 SPEEDS

PRO RANGE WITH CHUCK

TRUCK RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 brush
  • 1 tyre changing lever
  • 1 set of protection for jaws, tool-heads and bead breaker
  • 1 MICHELIN inflating gun

Optional equipment

  • Tubeless inflation
  • Plastic tool-heads

Download

More info

TECHNICAL CHARACTERISTICS

  • Pneumatic tilting movement of the column and of the arm.
  • Speed variator.
  • Ergo Control system for easy bead breaking.
  • 24'' table with 2 pneumatic clamping jacks.
  • Simultaneous pneumatic horizontal vertical arm locking.
  • Pressure regulator with lubricator and water filter.
  • Extractable pedal group.
  • Plastic protection to prevent damage to aluminium rims.
  • Pre-assembled additional arm.

Technical sheet

Data sheet

Rim diameterExt. 10" - 24'' / Int. 12'' - 28''
Rim width3" - 12.5"
Wheel diameterMax. 1200 mm
Height2 110 mm
Width1 380 mm
Depth1 840 mm
Weight380 kg
Power supply230 V 1 ph / 50 Hz / 12.5 A
Vehicle typePassenger Car, Light Duty Vehicle
Speed7.5 - 15 tr/min
Operating pressure8-10 bars
Rotation speed number1 speed

Download
