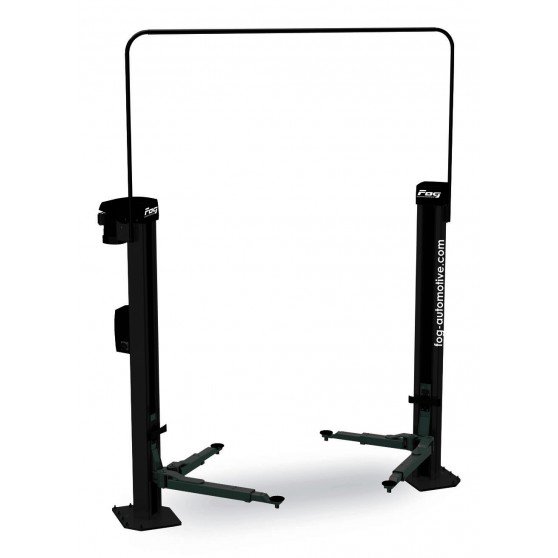

New AZUR 3T - 2 motors View larger

AZUR 3T - 2 motors lift

444 9520

Passenger Car Light Duty Vehicle

2 motors and electro-mechanical 2 post lift (capacity 3T) without base frame

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 3 000 kg
  • Min. lifting height for ultra-low vehicle: 95 mm
  • Great width between columns: 3 120 - 3 320 mm
  • Max. lifting height: 2 025 mm
  • Interchangeable asymmetrical arms with 2 extensions:
    - short arms: 540 - 850 mm
    - long arms: 900 - 1 425 mm
  • Loaded lift lifting/lowering time: 40 / 40 secs
  • Height of the lift: 4 050 - 4 350 mm


Technical sheet

    Top view                                 Front view

Data sheet

Weight578 kg
Power supply400 V 3ph / 50 Hz / 16A
Power2 x 1.5 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity3000 kg
Lifting/lowering time40 / 40 secs
Installation typeWithout base frame

Download
