New 2 Colonnes AZUR 3,5T hydraulique View larger

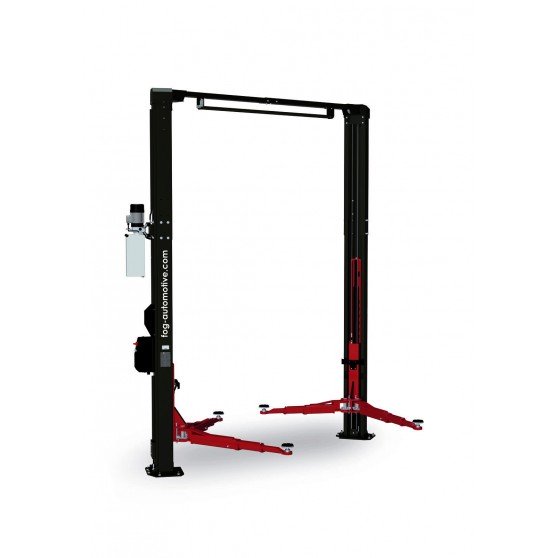

AZUR 3.5T - Hydraulic lift

444 9091

Passenger Car Light Duty Vehicle

Hydraulic 2 post lift (capacity 3.5T)

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 3 500 kg
  • Min. lifting height for ultra-low vehicle: 95 mm
  • Great width between columns: 3 495 mm
  • Max. lifting height: 1 940 mm
  • Interchangeable asymmetrical arms with 2 extensions:
    - short arms: 640 - 1145 mm
    -long arms: 880 - 1 560 mm
  • Loaded lift lifting/lowering time: 30 / 30 secs
  • Height of the lift: 4 063 - 4 259 mm


Technical sheet

    Top view                                 Side view

Data sheet

Weight808 kg
Power supply400 V 3ph / 50-60 Hz / 16A
Power2.2 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity3500 kg
Lifting/lowering time30 / 30 secs
Installation typeWith base frame

Download
