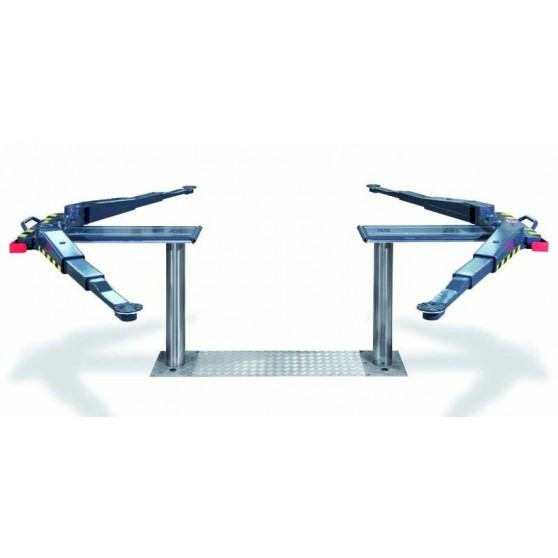

VISION III 3.5T - V arms (adjustable in width) - Min. height 70 mm
V.12275E + V.20780E
Passenger Car Light Duty Vehicle
VISION III 3.5T: 1 Cassette (Ref. V.12275E) + 1 Superstructure (Ref. V.20780E)
Other 3.5T inground lift with V arms (2265-2285 mm between cylinders)
"Sport" with Ø120/70/95 pads
Ref. V.12276E + V.21101E
Other 3.5T inground lift with V arms (2600 mm between cylinders)
Min. height 70 mm
Ref. V.12107E + V.21102E
Other inground lifts
Standard equipment
- Cassette 1315 - 1335 mm equipped with the hydraulic unit (cylinders 1950 mm), with cables and oil
- Superstructure with adjustable arms - min. height 70 mm
- Stable bearing pads
Download
More info
TECHNICAL CHARACTERISTICS
- Ultra-silent and very rapid lifting
- Double-telescoping multi-function arms (710 - 1443 mm)
- Automatic locking of the arms
- Arm supports adjustable in width (1226 - 2304 mm)
- Water-proof cassette
- Hard-chrome plated cylinders
- Corrosion-free guiding elements
- Electronic control
- Ecological oil
- Pneumatic emergency descent
- Safety device consisting of 2 independent hydraulic circuits
- Extremely robust foolproof connection shaft, ensuring perfect levelling
Technical sheet
Data sheet
| Power supply | 230 V 3 ph / 50 Hz / 25 A - 400V 3 ph / 50 Hz / 16 A |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Distance between cylinders | 1335 mm |
| Lifting capacity | 3500 kg |
| Cylinder stroke | 1950 mm |
| Effective height | 2020 mm |
| Lifting/lowering time | About 30 secs |
| Cylinder diameter | 2 x 123 mm |
| Foundation depth | 2615 mm |
| Motor pump unit | 3.0 kW |
| Superstructure type | With V arms |
