VISION III 3.5T - XY platforms - 1400-2000 mm
V.12275E + V.20828EXY
Passenger Car Light Duty Vehicle
VISION III 3.5T: 1 Cassette (Ref. V.12275E) + 1 Superstructure (Ref. V.20828EXY)
Other 3.5T inground lift with XY platforms
1200 - 1800 mm XY platforms
Ref. V.12275E + V.20829EXY
1600 - 2200 mm XY platforms
Ref. V.12275E + V.20830EXY
Other 3.5T inground lift with simple platforms

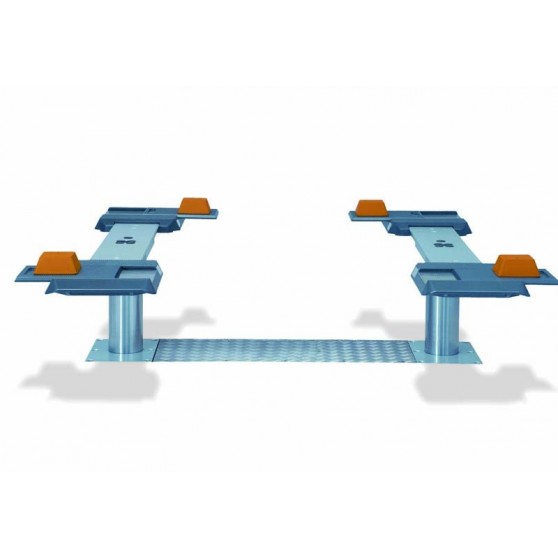

1200 - 1800 mm simple platforms
Ref. V.12275E + V.20829E
1400 - 2000 mm simple platforms
Ref. V.12275E + V.20828E
1600 - 2200 mm simple platforms
Ref. V.12275E + V.20830E
Other inground lifts
Standard equipment
- Cassette 1315 - 1335 mm equipped with the hydraulic unit (cylinders 1950 mm), with cables and oil
- Superstructure with 1400 - 2000 mm XY platforms
- Stable support rubber blocks
- XY platforms
Download
More info
TECHNICAL CHARACTERISTICS
- Ultra-silent and very rapid lifting
- Platforms adjustable in length: 1 400-2 000 mm
- Water-proof cassette
- Hard-chrome plated cylinders
- Corrosion-free guiding elements
- Electronic control
- Ecological oil
- Pneumatic emergency descent
- Safety device consisting of 2 independent hydraulic circuits
- Extremely robust foolproof connection shaft, ensuring perfect levelling
Technical sheet
Data sheet
| Power supply | 230 V 3 ph / 50 Hz / 16 A - 400 V 3 ph / 50 Hz / 16 A |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Distance between cylinders | 1335 mm |
| Lifting capacity | 3500 kg |
| Cylinder stroke | 1950 mm |
| Effective height | 2015 mm + support wedges |
| Lifting/lowering time | About 30 secs |
| Cylinder diameter | 2 x 123 mm |
| Foundation depth | 2625 mm |
| Motor pump unit | 3.0 kW |
| Superstructure type | With adjustable platforms |
