GALAXIE IV 5T - Flat tracks - Auxiliary lift - Recessed-m.
412 9316D
Passenger Car Light Duty Vehicle

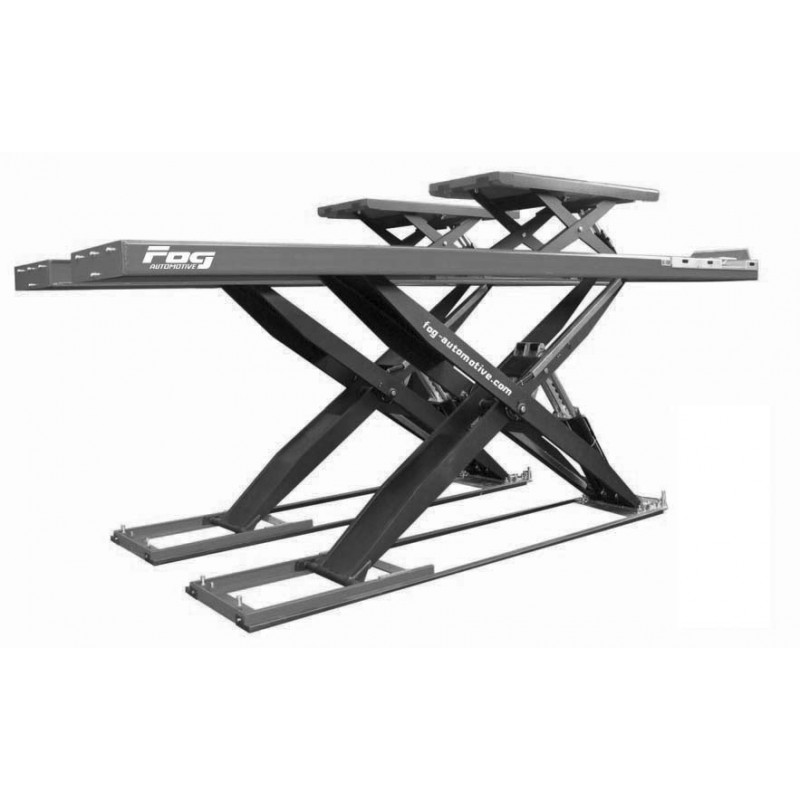

GALAXIE IV 5T - Big scissors lift with flat tracks and auxiliary lift table, recessed-mounted version
Other 5T flat tracks
GALAXIE IV 5T - Big scissors lift with flat tracks and auxiliary lift table, surfaced-mounted version
Ref. 412 9306D
Other available references
BIG SCISSORS 4.5T - WHELL ALIGN.
BIG SCISSORS 5T - WHEEL ALIGN.
BIG SCISSORS 5T - TECHNICAL CONTROL
Other references GALAXIExxxLA with auxiliary lift table
More info
TECHNICAL CHARACTERISTICS - MAIN LIFT
- Capacity of the main lift: 5 000 kg
- Min. height of tracks: 0 mm
- Tracks width: 700 mm
- Tracks length: 5 200 mm
- Max. lifting height of the main lift: 2 200 mm
- Loaded main lift lifting/lowering time: 30 / 30 secs
TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE
- Capacity of the auxiliary lift table: 4 000 kg
- Max. lifting height of the auxiliary lift table: 565 mm
- Platforms length of the auxiliary lift table: 1 500-1 940 mm
- Loaded auxiliary lift lifting/lowering time: 9 / 9 secs
Technical sheet

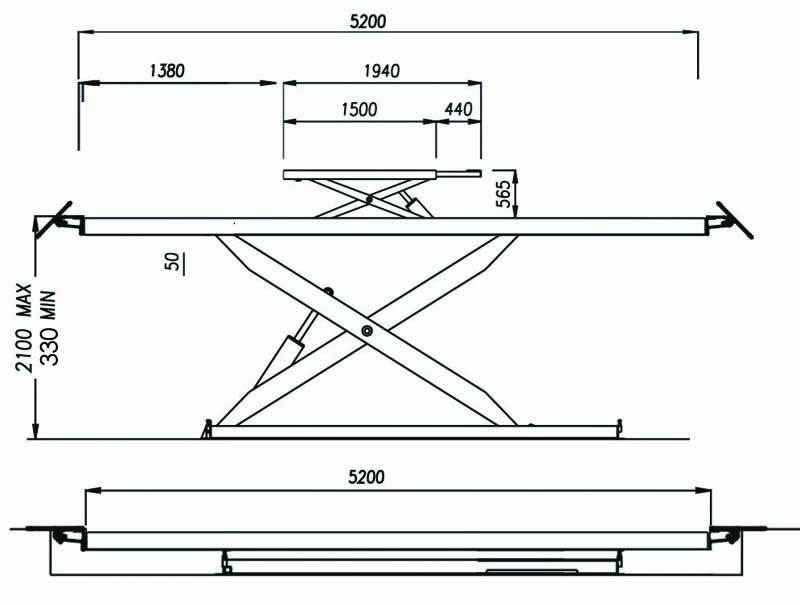

Side view
Top view

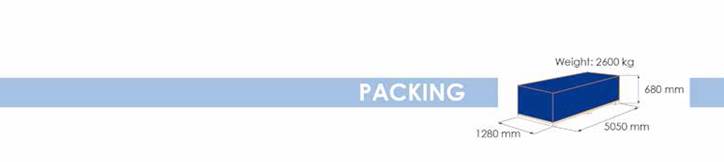

Data sheet
| Weight | 700 kg |
| Power supply | 230 V 3 ph / 50 Hz / 16.4 A - 400 V 3 ph / 50 Hz / 9.5 A |
| Power | 1,8 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Hydraulic pressure | 210 bars |
| Main lift capacity | 5000 kg |
| Auxiliary lift capacity | 4000 kg |
| Lifting/lowering time | Loaded main lift lifting/lowering time: 30 / 30 secs - Loaded auxiliary lift lifting/lowering time: 9 / 9 secs |
| Auxiliary lift | With |
| Aligner front housing | Without |
| Play detectors | Without |
