Other 5T special wheel alignment

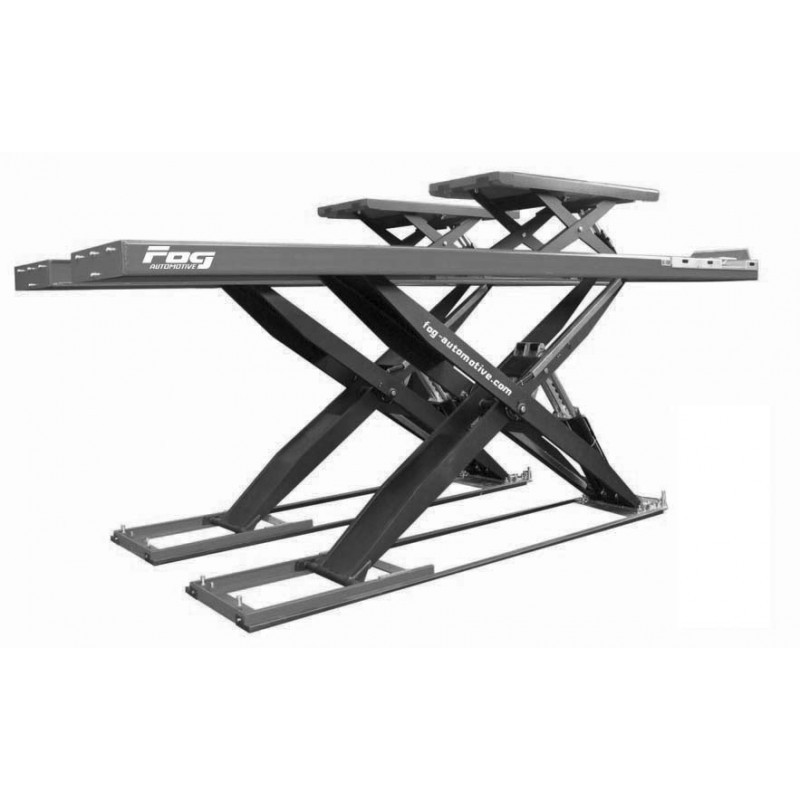

GALAXIE IV 5T - Big scissors lift with auxiliary lift table, surfaced-mounted version, special wheel alignment
Ref. 412 9305D
Other available references
This product is no longer in stock
TECHNICAL CHARACTERISTICS - MAIN LIFT
- Ideal for wheel alignment.
- Excellent clearance around and under the vehicle.
- Tracks with hydraulic synchronization without connection shaft for practical access to accessories such as oil collectors and support jacks.
- « Deadman’s Handle » type of control.
- Capacity of the main lift: 5 000 kg

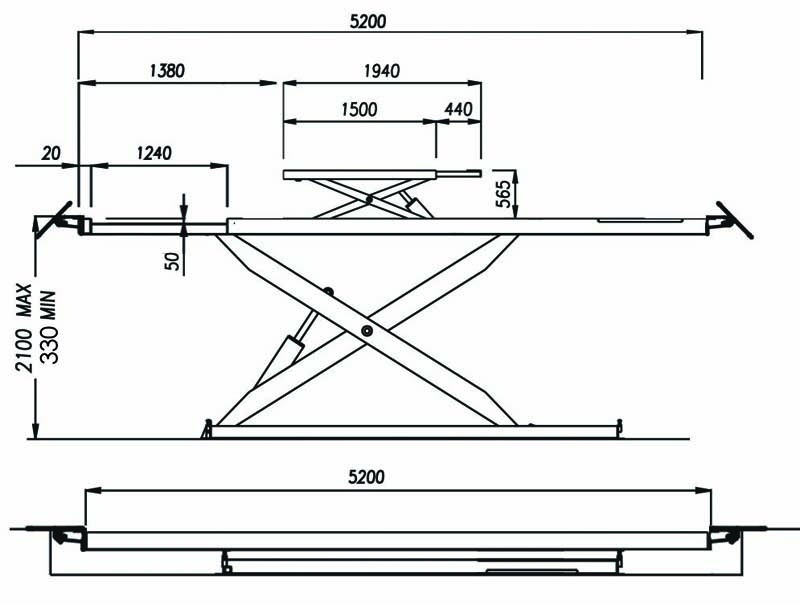

- Min. height of tracks: 0 mm
- Tracks width: 700 mm
- Tracks length: 5 200 mm
- Max. lifting height of the main lift: 2 100 mm
- Loaded main lift lifting/lowering time: 30 / 30 secs
TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE
- Capacity of the auxiliary lift table: 4 000 kg
- Max. lifting height of the auxiliary lift table: 565 mm
- Platforms length of the auxiliary lift table: 1 500-1 940 mm
- Loaded auxiliary lift lifting/lowering time: 9 / 9 secs
|Power supply||230 V 3 ph / 50 Hz / 16.4 A - 400 V 3 ph / 50 Hz / 9.5 A|
|Vehicle type||Passenger Car, Light Duty Vehicle|
|Operating pressure||8-10 bars|
|Hydraulic pressure||210 bars|
|Main lift capacity||5000 kg|
|Auxiliary lift capacity||4000 kg|
|Lifting/lowering time||Loaded main lift lifting/lowering time: 30 / 30 secs - Loaded auxiliary lift lifting/lowering time: 9 / 9 secs|
|Aligner front housing||With|
