Best sellers SATELLITE 3T - Extra-flat - Surfaced-mounted version View larger

SATELLITE 3T - Extra-flat

436 9301

Passenger Car Light Duty Vehicle

SATELLITE 3T - Small scissors lift, Extra-flat, surfaced-mounted version

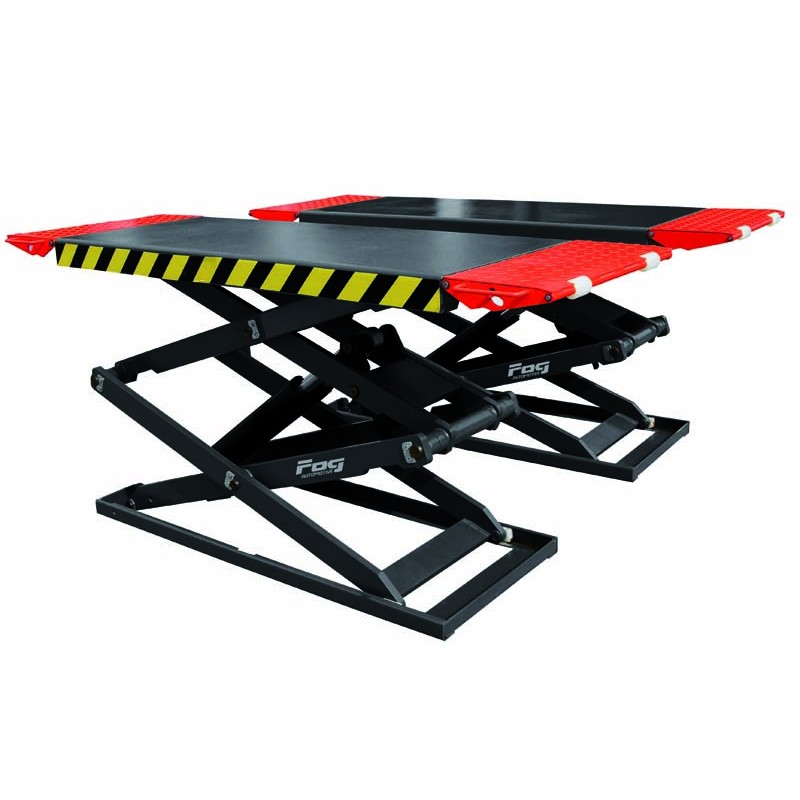

Recessed-mounted version

Adding to the Ref. 436 9301 lift the brackets kit:Ref. 436 8301

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Snap-on ramps can be used as platform extensions.
  • Excellent clearance around and under the vehicle.
  • Platforms hydraulically synchronised by double master-slave crossed circuits.
  • Lowering speed self-regulated.
  • Lifting capacity: 3 000 kg
  • Min. height of the lift: 105 mm
  • Max. lifting height: 1 900 mm
  • Total width: 1 990 mm
  • Width of the platforms: 635 mm
  • Length of the platforms: 1 500 - 2 080 mm
  • Distance between platforms: 720 mm
  • Loaded lift lifting/lowering time: 50 / 60 secs

Technical sheet

Side view                                            Front view

Top view

Data sheet

Weight700 kg
Power supply400 V 3 ph + N / 50 Hz / 6 A
Power2.2 kW
Vehicle typePassenger Car, Light Duty Vehicle
Hydraulic pressure210 bars
Lifting capacity3000 kg
Lifting/lowering time50 / 60 secs
Installation typeSurfaced-mounted

Download
