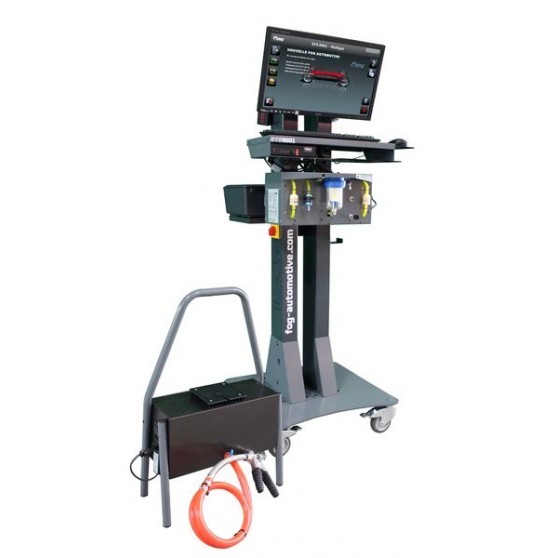

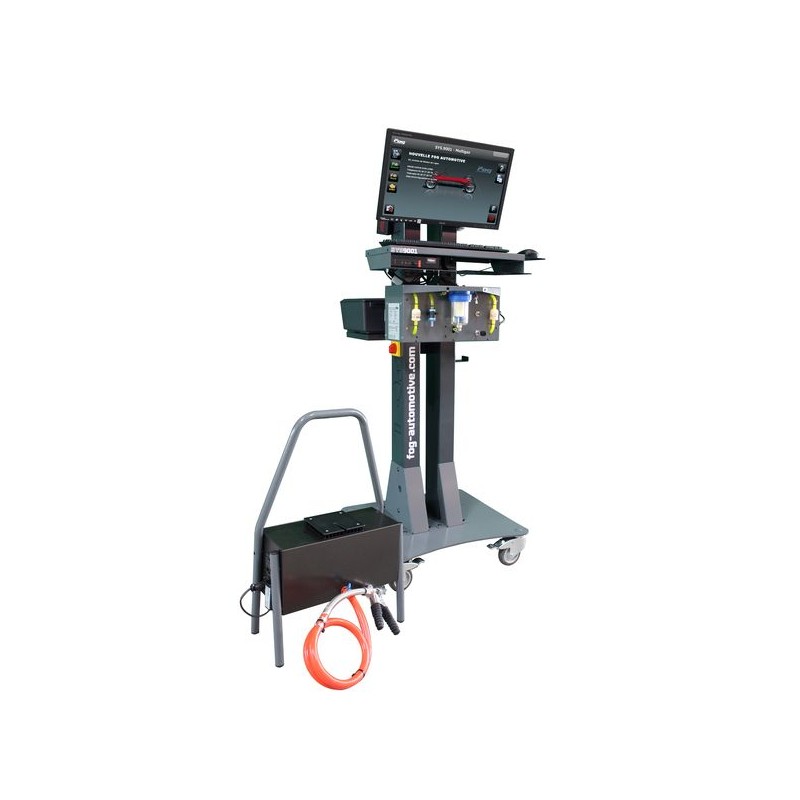

Emission tester combo - Touch-screen - Bluetooth version - Special Technical control

TECHNICAL CHARACTERISTICS

• 1 4-gas analyser (5th gas as an option)
• 1 wired or Bluetooth opacimeter
• 1 Bluetooth EOBD reader, for collecting the engine speed and oil temperature
• 1 touch screen 24’’
• Linked by WiFi to a computer system (PC, keyboard, mouse)
• WiFi printer

SIMPLIFIED INTERFACE

• The brand, model, type of engine (diesel or petrol) are pre-selected thanks to the data from the registration certificate.
• The program obtains the oil temperature and rev counter datas via of the EOBD reader.
• The touch-screen linked to a teaching program increases the speed of your interactions.

REGULATORY METHODS AND MEASUREMENTS

After recovering all the vehicle’s information, the emission tester combo guides you and measures:

• For the gas analyser : the rate of the CO and the lambda, according to engine types (standard or
  low-emission) and the entry into circulation’s date of the vehicles.
• For the opacimeter: the opacity of the exhaust fumes, taking into account the different engine types (naturally aspirated, turbo-combustion) and the entry into circulation’s date of the vehicles.
• For the EOBD reader : the proper functionning of the MIL indicator and the recovery of default codes.
• All the results produced by these devices are transmitted to the centre’s computer system using the OTCLAN communications protocol in force.

UPDATES AND REMOTE ASSISTANCE

• The FOG UPDATE system means that you automatically benefit from the latest updates. On each start-up, it connects to the FOG server to check whether new functionalities have been implemented.
• SYS.9001 is a connected device that can be controlled remotely. This means that, if necessary, you can
  benefit from a diagnosis by an FOG expert who can answer your questions and further your training. In this way you can increase your workshop’s profitability day by day.
