Special Light and Heavy Duty Vehicles

U.680E

Light Duty Vehicle Heavy Duty Vehicle

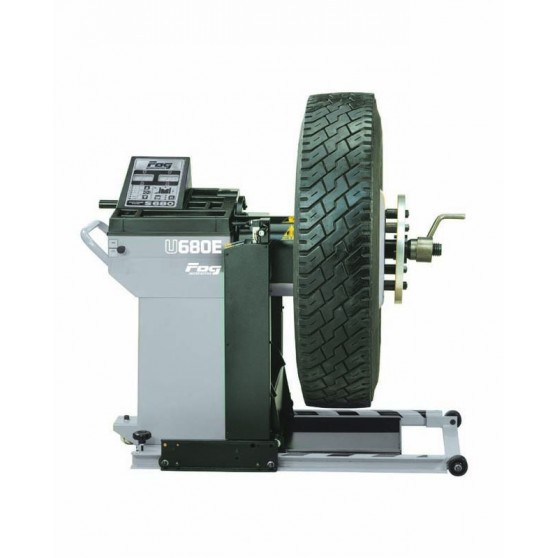

Balancer with wheel lift for Light Duty Vehicle, truck and bus wheels

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 x 5 mm hexagonal key
  • 1 x 6 mm hexagonal key
  • 1 x 12 mm hexagonal key
  • 1 x 100 g calibration weight
  • 1 x 300 g calibration weight
  • 1 double centring cone, Ø 117-173 mm, with spacer ring
  • 1 threaded hub, Ø 46 mm, for Light and Heavy Duty Vehicle wheels

Optional equipment

  • Professional h wheel locking kit for Heavy Duty Vehicle
  • Standard accessories kit for Heavy Duty Vehicle wheels
  • Locking accessories kit for Passenger Car and Light Duty Vehicle wheels
  • 1 flange for rims with 3, 4, 5 holes but no central hole

Download

More info

TECHNICAL CHARACTERISTICS

  • Easily movable thanks to 2 fixed wheels and one directional.
  • Motorised start for the wheel.
  • Automatic static and dynamic unbalance detection.
  • Pneumatic braking device for end-cycle stop.
  • 5 programs for Light Duty Vehicle aluminium rims.
  • 5 programs for Heavy Duty Vehicle aluminium rims.
  • No wheel covering protection required.

Schéma Technique

Data sheet

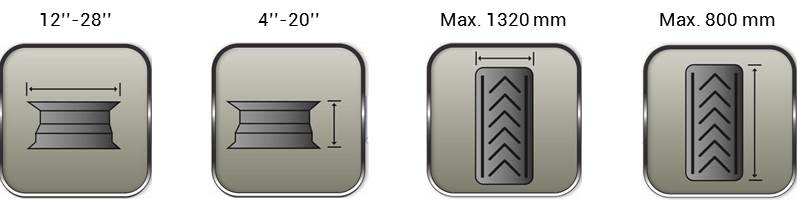

Rim diameter12" - 28"
Rim width4" - 20"
Wheel width800 mm max.
Wheel diameter1320 mm max.
Height990 mm
Width1560 mm
Depth670 mm
Weight140 kg
Power supply230V 1ph 50Hz
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Operating pressure8-10 bars

Download
