Sonar, laser and pneumatic clamping

EQ.312V

Passenger Car Light Duty Vehicle

Video Balancer with 2 automatic rods, equipped with a laser, pneumatic clamping and a sonar

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 turntable axle for rims with a central hole (Ø 40 mm)
  • 1 set of 3 cones (Ø 40-62 mm, Ø 54-81 mm, Ø 70-98 mm)
  • 1 balancing weight clamp
  • 1 calibration weight
  • 1 compass for measuring the width of the rim

Optional equipment

  • Universal flange

Download

More info

TECHNICAL CHARACTERISTICS

  • The automatic laser helps you to apply all types of balancing weights accurately and quickly.
  • Pneumatic wheel clamping for perfect centring.
  • The balancer is equipped with a sonar allowing the rim’s lateral runout and the wheel’s concentricity to be measured.
  • Video wheel balancer with very advanced functions that ensure reliable, accurate balancing thanks to 16-bit technology.
  • A 17’’ monitor and a keyboard enable easy navigation in all the menus.
  • The motor’s low rotation speed (less than 100 rpm) reduces the wear for the various mechanical components and significantly increases the machine’s accuracy.
  • The motor is started automatically by lowering the cover.
  • The machine has a large platform with 9 compartments for holding balancing weights, cones and tools.


A MULTITUDE OF PROGRAMS

  • With the SPLIT program you can decide where to place each of the balancing weights, hiding them
    behind the spokes, or avoiding all obstacles (valves, etc.).
  • The ALU-S/ALU-SE mode helps you to position the balancing weights exactly where the measurement was taken
  • The MARS mode cuts by a factor of 3 the inherent errors from residuals and from the inaccuracy of user actions.

Schéma Technique

Data sheet

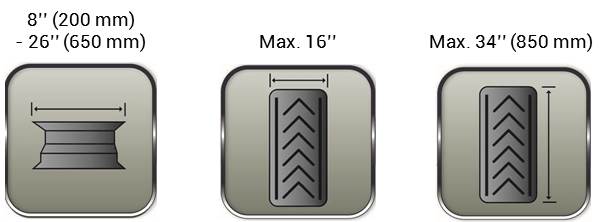

Rim diameter8" (200 mm) - 26" (650 mm)
Wheel width16" max.
Wheel diameter34" (850 mm)
Wheel weight90 kg
Height1500 mm
Width1130 mm
Depth1180 mm
Weight116 kg
Vehicle typePassenger Car, Light Duty Vehicle
FlagMadeForFog
Speed98 RPM
Accuracy1 g

Download
