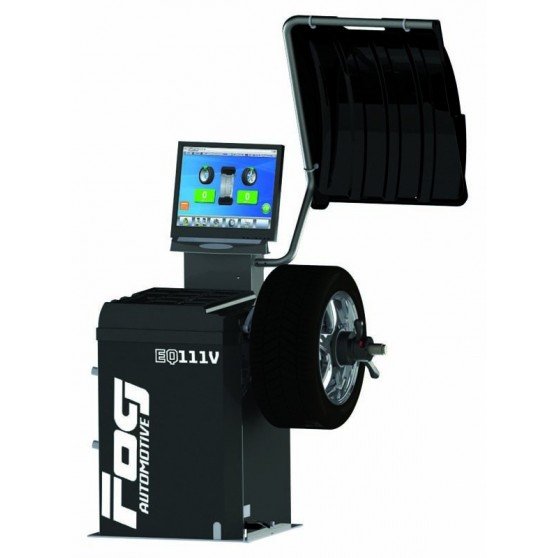

Video wheel balancer - 1 automatic rod View larger

Associated products :

Video wheel balancer - 1 automatic rod

EQ.111V

Passenger Car Light Duty Vehicle

Video wheel balancer with 1 automatic rod

The video wheel balancer

Other video models

Video wheel balancer with 2 automatic rods
Ref. EQ.112V

LASER VIDEO WHEEL BALANCERS

VIDEO WHEEL BALANCERS - SONAR

Other available models

LCD WHEEL BALANCERS

TRUCK WHEEL BALANCERS

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 turntable axle for rims with a central hole (Ø 40 mm)
  • 1 set of 3 cones (Ø 40-62 mm, Ø 54-81 mm, Ø 70-98 mm)
  • 1 balancing weight clamp
  • 1 calibration weight
  • 1 compass for measuring the width of the rim

Optional equipment

  • 2 automatic gauges
  • Universal flange

Download

More info

SHAFT AND FLANGE

The new one-piece shaft(1) design makes it possible to:

  • work with wheels with much larger dimensions - diameter 8’’ (200 mm) to 26’’ (650 mm), width 16’’ (415 mm), and weight (75 kg).
  • avoid all the inaccuracies caused by poor centring when the flange is loaded on the shaft.
  • have very stable measurement process thanks to 3 sensors(2) : the values are no longer upset by mechanical links or vibrations.

TECHNICAL CHARACTERISTICS

  • Video wheel balancer with very advanced functions that ensure reliable, accurate balancing thanks to 16-bit technology.
  • A 17’’ monitor and a keyboard enable easy navigation in all the menus.
  • The motor’s low rotation speed (less than 100 rpm) reduces the wear for the various mechanical components and significantly increases the machine’s accuracy.
  • Entering the measurements - offset, diameter and distance between the balancing weights - by turning the wheel simplifies all the parameter settings considerably.
  • The motor is started automatically by lowering the cover.
  • The machine has a large platform with 9 compartments for holding balancing weights, cones and tools.


A MULTITUDE OF PROGRAMS

  • With the SPLIT program you can decide where to place each of the balancing weights, hiding them
    behind the spokes, or avoiding all obstacles (valves, etc.).
  • The ALU-S/ALU-SE mode helps you to position the balancing weights exactly where the measurement was taken.
  • The MARS mode cuts by a factor of 3 the inherent errors from residuals and from the inaccuracy of user actions.

Schéma Technique

Data sheet

Automatic rod number1 rod
Rim diameter8" (200 mm) - 26" (650 mm)
Wheel width16" max.
Wheel diameter34" (850 mm) max.
Wheel weight90 kg
Height1730 mm
Width1100 mm
Depth1070 mm
Weight126 kg
Power supply230 V / 50 Hz / 50W
Vehicle typePassenger Car, Light Duty Vehicle
FlagMadeForFog
Speed98 RPM
Accuracy1 g
