Manual LCD wheel balancer View larger

Associated products :

Manual LCD wheel balancer

EQ.110L

Passenger Car Light Duty Vehicle

LCD wheel balancer with 2 manual rods

The most compact one with all the features of bigger models

Other automatic rod models

LCD wheel balancers with 1 automatic rod
Ref. EQ.111L

LCD wheel balancers with 2 automatic rods
Ref. EQ.112L

Other available models

VIDEO WHEEL BALANCERS

LASER VIDEO WHEEL BALANCERS

VIDEO WHEEL BALANCERS - SONAR

TRUCK WHEEL BALANCERS

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 turntable axle for rims with a central hole (Ø 40 mm)
  • 1 set of 3 cones (Ø 40-62 mm, Ø 54-81 mm, Ø 70-98 mm)
  • 1 balancing weight clamp
  • 1 calibration weight
  • 1 compass for measuring the width of the rim

Optional equipment

  • 1 automatic rod
  • 2 automatic rods
  • Universal flange

Download

More info

SHAFT AND FLANGE

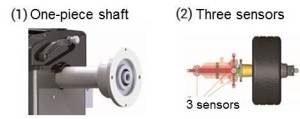

The new one-piece shaft(1) design makes it possible to:

  • work with wheels with much larger dimensions - diameter 8’’ (200 mm) to 26’’ (650 mm), width 16’’ (415 mm), and weight (75 kg).
  • avoid all the inaccuracies caused by poor centring when the flange is loaded on the shaft.
  • have very stable measurement process thanks to 3 sensors(2) : the values are no longer upset by mechanical links or vibrations.

TECHNICAL CHARACTERISTICS

  • An ultra-compact balancer with very advanced functions that ensure reliable, accurate balancing thanks to 16-bit technology.
  • Very rare in this balancer range, the motor’s low rotation speed (less than 100 rpm) reduces wear for the
    various mechanical components and significantly increases the machine’s accuracy.
  • Entering the measurements - offset, diameter and distance between the balancing weights - by turning the wheel simplifies all the parameter settings considerably.
  • The automatic rods (versions EQ.111L and EQ.112L) offer increased comfort. The balancer takes all the measurements itself and ensures optimum accuracy.
  • The motor is started automatically by lowering the cover.

A MULTITUDE OF PROGRAMS

  • With the SPLIT program you can decide where to place each of the balancing weights, hiding them behind the spokes, or avoiding all obstacles (valves, etc.).
  • The ALU-S/ALU-SE mode helps you to position the balancing weights exactly where the measurement was taken.
  • The MARS mode cuts by a factor of 3 the inherent errors from residuals and from the inaccuracy of user actions.

Schéma Technique

Data sheet

Rim diameter8" (200 mm) - 26" (650 mm)
Wheel width16" max.
Wheel diameter34" (850 mm) max.
Wheel weight75 kg max
Height1110 mm
Width990 mm
Depth510 mm
Weight59 kg
Power supply230 V / 50 hz / 60W
Vehicle typePassenger Car, Light Duty Vehicle
FlagMadeForFog
Speed98 RPM
Accuracy1 g

Download
