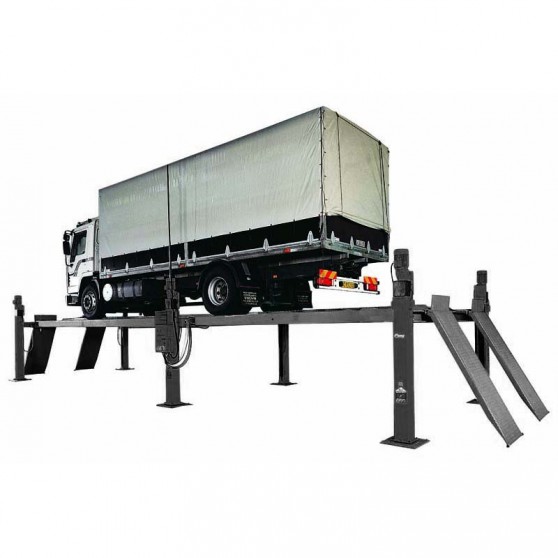

ATLAS 24T - 8 m flat tracks View larger

Associated products :

ATLAS 24T - 8 m flat tracks

451 9812

Heavy Duty Vehicle

6 electro-mechanical post lift (capacity 24T), 8.00 m flat tracks

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 24 000 kg
  • Very low tracks: 295 mm
  • Tracks width: 700 mm
  • Tracks length: 2 x 5 000 mm
  • Length of the ramps: 1 260 mm  (1)
  • Width between columns: 3 200 mm
  • Max. lifting height: 1 850 mm
  • Loaded lift lifting/lowering time: 120 / 120 sec
  • Height of the lift: 2 550 mm

(1) Please consult us about 2000 or 2800 mm ramps


Schéma Technique

Side view

451 9812 - schéma

Top view

Data sheet

Power supply400 V / 3 ph + N / 50 Hz / 35 A
Power6 x 2.2 kW
Vehicle typeHeavy Duty Vehicle
Lifting capacity20000 kg
Lifting/lowering time120 / 120 secs

Download
