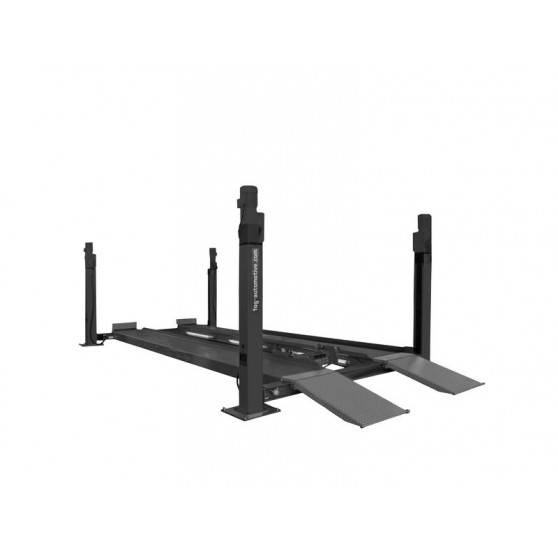

ATLAS 16T - 3,95 m flat tracks View larger

Associated products :

ATLAS 16T - 3,95 m flat tracks

451 9803

Heavy Duty Vehicle

4 electro-mechanical post lift (capacity 16T), 3.95 m flat tracks

Other 16T references

4 electro-mechanical post lift (capacity 16T), 7.50 m flat tracks
Ref. 451 9801

4 electro-mechanical post lift (capacity 16T), 8.00 m flat tracks
Ref. 451 9802

Other available references

4 POST LIFT - 10T

4 POST LIFT - 20T

6 POST LIFT - 24T

More info Technical sheet Data sheet

Standard equipment

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 16 000 kg
  • Very low tracks: 295 mm
  • Tracks width: 700 mm
  • Tracks length: 3 950 mm  (1)
  • Length of the ramps: 1 260 mm  (2)
  • Width between columns: 3 200 mm
  • Max. lifting height: 1 850 mm
  • Loaded lift lifting/lowering time: 120 / 120 secs
  • Height of the lift: 2 550 mm


(1) Please contact us about a 3rd track
(2) Please contact us about 2000 or 2800 m ramps



Schéma Technique

Side view

451 9803

Top view

Data sheet

Power supply400 V / 3 ph + N / 50 Hz / 35 A
Power4 x 2.2 kW
Vehicle typeHeavy Duty Vehicle
Lifting capacity16000 kg
Lifting/lowering time120 / 120 secs

Download
