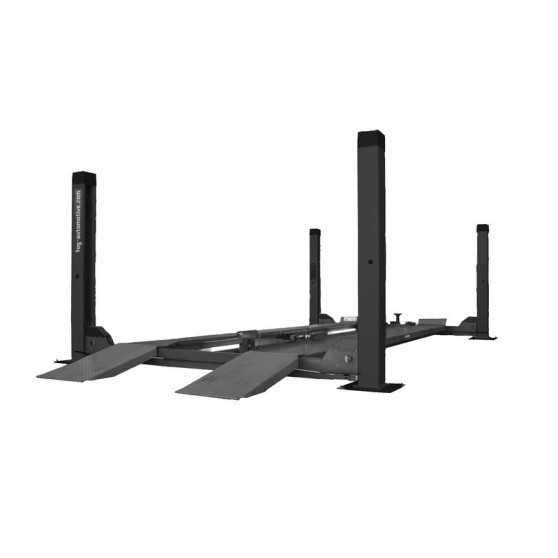

ATLAS 10T - Flat tracks (3.12m between columns) View larger

Associated products :

ATLAS 10T - Flat tracks (3.12m between columns)

435 9902

Light Duty Vehicle Heavy Duty Vehicle

4 electro-hydraulic post lift (capacity 10T), with 4.60 m flat tracks and 3.12 m width between columns

Other 10T references

4 electro-hydraulic post lift (capacity 10T), with 4.60 m flat tracks and 2.80 m width between columns
Ref. 435 9901

4 electro-hydraulic post lift (capacity 10T), with 7.00 m flat tracks and 3.52 m width between columns
Ref. 435 9903

Other available references

4 POST LIFT - 16T

4 POST LIFT - 20T

6 POST LIFT - 24T

More info Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 10 000 kg
  • Very low tracks: 265 mm
  • Tracks width: 650 mm
  • Tracks length: 4 600 mm
  • Length of the ramps: 1 100 mm (1)
  • Width between columns: 3 120 mm
  • Max. lifting height: 1 700 mm
  • Loaded lift lifting/lowering time: 45 / 45 secs
  • Height of the lift: 2 354 mm


(1) Please consult us about 1600 mm ramps

Schéma Technique

Side view

4359902-schéma côté2

Top view

4359902-dessus2

Front View

                4359902-face

Data sheet

Power supply400 V / 3 ph / 50 Hz
Power3 kW
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Operating pressure7-10 bars
Hydraulic pressure260 bars
Lifting capacity10000 kg
Lifting/lowering time45/45 secs

Download
