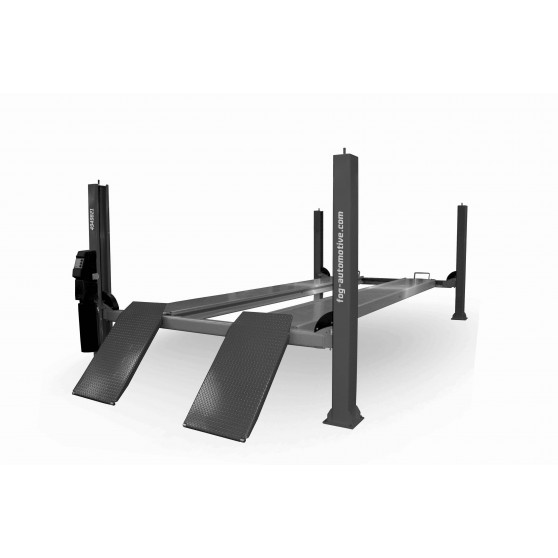

QUADRA 7.2 T - Flat tracks View larger

Associated products :

QUADRA 7.2 T - Flat tracks

494 9821

Passenger Car Light Duty Vehicle

4 electro-hydraulic post lift (capacity 7.2T) with flat tracks

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Lifting capacity: 7 200 kg
  • Very low tracks: 182 mm
  • Tracks width: 630 mm
  • Tracks length: 6 000 mm
  • Length of the ramps: 1 140 mm
  • Width between columns: 3 000 mm
  • Max. lifting height: 1 820 mm
  • Loaded lift lifting/lowering time: 40 / 58 secs
  • Height of the lift: 2 235 mm

Schéma Technique

Top view

494 9821 - schéma côté

Side view

494 9821 - schéma dessus

Data sheet

Weight1800 kg
Power supply230 V 3 ph / 50 Hz - 400 V 3 ph + N / 50 Hz
Power3 kW
Vehicle typePassenger Car, Light Duty Vehicle
Lifting capacity7200 kg
Lifting/lowering time40 / 58 secs
Auxiliary liftWithout
Aligner front housingWithout
