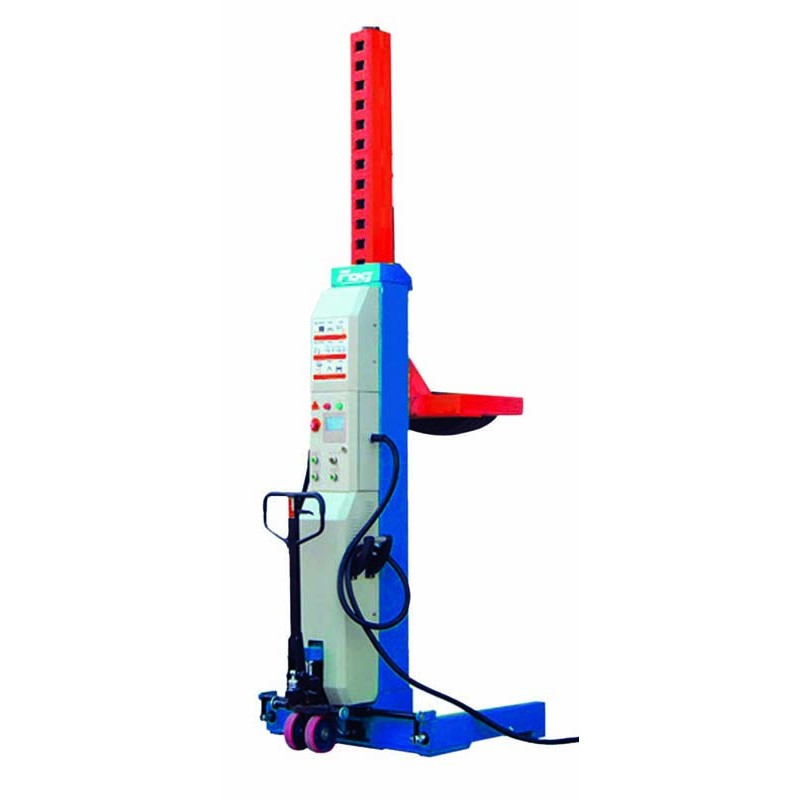

Jeu de Set of 4 V 8.5T View larger

DIAPASON V 8.5T

454 9608

Heavy Duty Vehicle

DIAPASON V 8.5T - electro-hydraulic mobile column lift with adjustable forks, from heavy duty vehicle to articulated bus

Available :

  • Set of 2 columns - Réf. 454 9608-2
  • Set of 4 columns - Réf. 454 9608-4
  • Set of 6 columns - Réf. 454 9608-6

Other available references

MOBILE COLUMN LIFTS 5.5T

MOBILE COLUMN LIFTS 7.5T

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Forks adjustable from 500 to 1120 mm
  • Does not require civil construction
  • Optimum accessibility under the vehicle
  • Control unit with stop button on each column
  • Column synchronization and managment of the number of columns from the master column
  • Lifting heights permanently displayed and monitored on the screen
  • Double safety system
  • Lifting time: 150 secs
  • Max. effective height: 1 700 mm

Schéma Technique

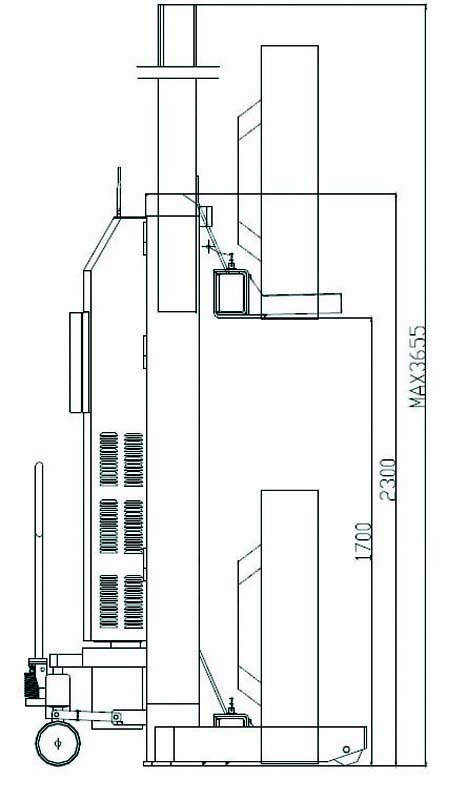

Side view

Col Mob côté

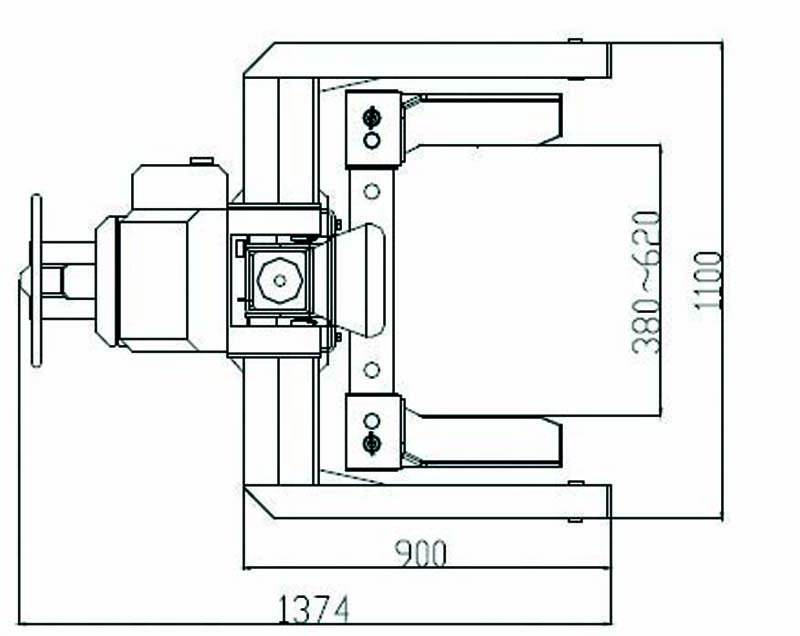

Top view

Col Mob dessus

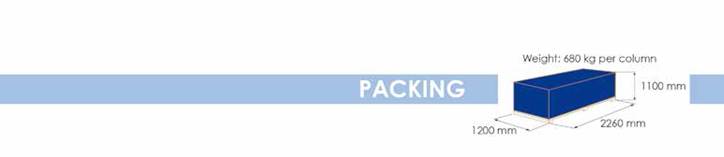

Data sheet

Height2260 mm
Width1200 mm
Depth1100 mm
Weight680 kg per column
Power supply400 V 3 ph / 50 Hz
Power2,2 kW per column
Vehicle typeHeavy Duty Vehicle
Lifting capacity8500 kg

Download
