QUADRA 5T - Auxiliary lift - For wheel alignment

494 9750

Passenger Car Light Duty Vehicle

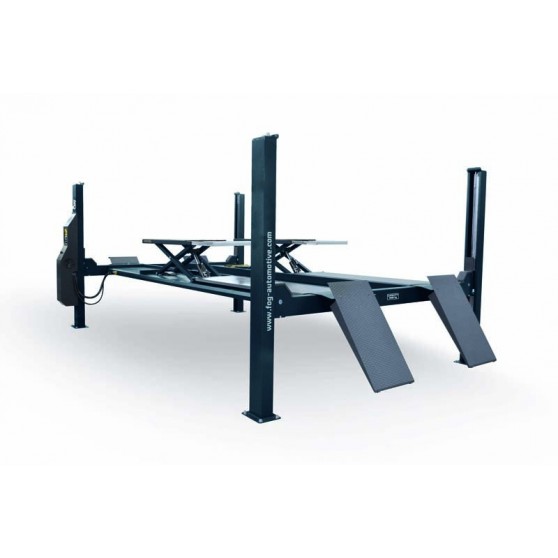

4 electro-hydraulic post lift (capacity 5T) with an auxiliary lift table special for wheel alignment

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS - MAIN LIFT

  • Ideal for wheel alignment thanks to its front housing for turntables, and its side-slip plates and its great width between the columns.
  • The great tracks width means that most light and utility vehicles can be lifted without having to move the tracks.
  • Lifting capacity: 5 000 kg
  • Very low tracks: 180 mm
  • Tracks width: 665 mm
  • Tracks length: 5 200 mm
  • Width between columns: 2 950 mm
  • Max. lifting height: 1 995 mm
  • Loaded lift lifting/lowering time: 55 / 58 secs.
  • Height of the lift: 2 300 mm
  • Aligner front housing length: 1 250 mm

(optional front housing cover)

TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE

  • Lifting capacity: 3 500 kg
  • Loaded lift lifting/lowering time: 13/17 secs
  • Max. height - auxiliary lift: 450 mm
  • Platform dimensions of the auxiliary lift table: (1 385-2 000) x 610 mm


Schéma Technique

Top view

494 9752 - Vue de côté

Side view

494 9752 - Vue de dessus

Data sheet

Weight1 750 kg
Power supply230 V 3ph/50 Hz/12.8 A - 400 V 3ph/50 Hz/7.4 A
Power2.6 kW
Vehicle typePassenger Car, Light Duty Vehicle
Operating pressure6-8 bars
Hydraulic pressure255 bars
Main lift capacity5 000 kg
Auxiliary lift capacity3 500 kg
Lifting/lowering timeLevage principal :55 / 58 secs / Levage auxiliaire: 13 / 17 secs
Auxiliary liftWith
Aligner front housingWith

Download
