DIAPASON V 7.5T

454 9607

Light Duty Vehicle Heavy Duty Vehicle

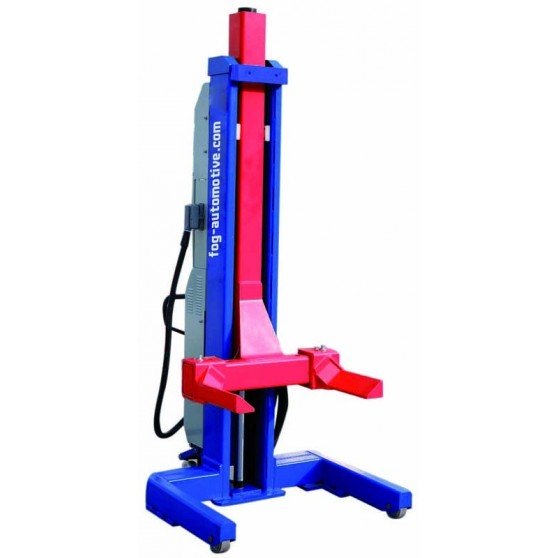

DIAPASON V 7.5T - electro-hydraulic mobile column lift with adjustable forks

 Available Wired version:

  • Set of 2 columns - Ref. 454 9607-2
  • Set of 4 columns - Ref. 454 9607-4
  • Set of 6 columns - Ref. 454 9607-6

Available WiFi version:

  • Set of 4 columns - Ref. 454 9607-4WLAN
  • Set of 6 columns - Ref. 454 9607-6WLAN

Other available references

MOBILE COLUMN LIFTS 5.5T

MOBILE COLUMN LIFTS 8.5T

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Forks adjustable from 500 to 1120 mm
  • Does not require civil construction
  • Optimum accessibility under the vehicle
  • Control unit with stop button on each column
  • Column synchronization and managment of the number of columns from the master column
  • Lifting heights permanently displayed and monitored on the screen
  • Double safety system
  • Lifting time: 120 secs
  • Max. effective height: 1 700 mm

Technical sheet

Side view

Col Mob côté

Top view

Col Mob dessus

Data sheet

Height2260 mm
Width1200 mm
Depth1100 mm
Weight580 kg per column
Wired power supply400 V 3 ph / 50 Hz + N
Batterie power supply230 V 1 ph / 50 Hz
Power2,2 kW per column
Batteries24 V / 100 Ah
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Lifting capacity7500 kg

Download
