QUADRA 5T - Flat tracks - For wheel alignment

494 9752

Passenger Car Light Duty Vehicle

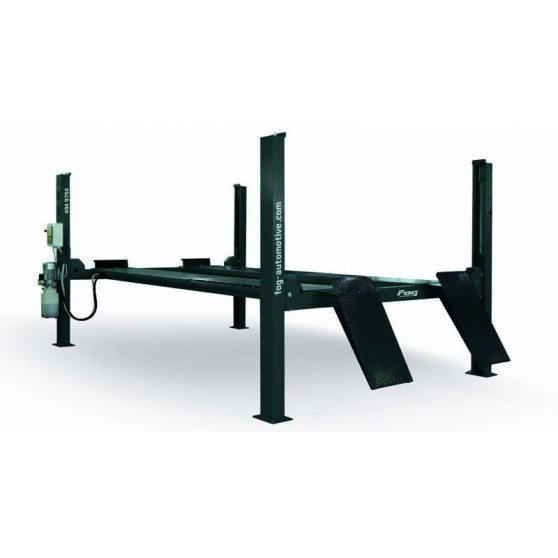

4 electro-hydraulic post lift (capacity 5T), flat tracks, special for wheel alignement

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Ideal for wheel alignment thanks to its front housing for turntables, and its side-slip plates and its great width between the columns.
  • The great tracks width means that most light and utility vehicles can be lifted without having to move the tracks.
  • Lifting capacity: 5 000 kg
  • Very low tracks: 180 mm
  • Tracks width: 630 mm
  • Tracks length: 5 100 mm
  • Width between columns: 2 950 mm
  • Max. lifting height: 1 960 mm
  • Loaded lift lifting/lowering time: 42 / 34 secs.
  • Height of the lift: 2 300 mm
  • Aligner front housing length: 1 035 mm

(optional front housing cover)

Schéma Technique

Top view

494 9752 - Vue de côté

Side view

494 9752 - Vue de dessus

Data sheet

Weight1 400 kg
Power supply230 V 3ph/50 Hz/12.8 A - 400 V 3ph/50 Hz/7.4 A
Power2.6 kW
Vehicle typePassenger Car, Light Duty Vehicle
Hydraulic pressure230 bars
Lifting capacity 5 000 kg
Lifting/lowering time42 / 34 secs
Auxiliary liftWithout
Aligner front housingWith

Download
