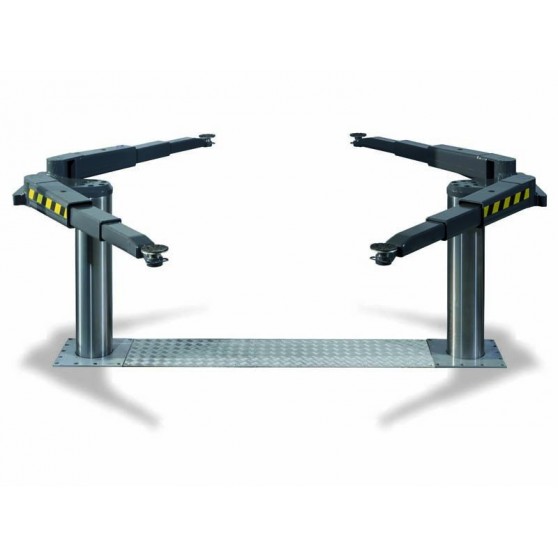

VISION III 5T - V arms (2150 mm between cylinders)

V.12103E + V.20775E

Passenger Car Light Duty Vehicle

VISION III 5T: 1 Cassette (Ref. V.12103E) + 1 Superstructure (Ref. V.20775E)

Other 5T inground lift

5T inground lift with V arms (ajustable in width)
Ref. V.12399E + V.20773E

Other inground lift

VISION III 3.5T - ADJUSTABLE PLATFORMS

VISION III 3.5T - V ARMS

More info Accessories Technical sheet Data sheet

Standard equipment

  • Cassette 2150 mm equipped with the hydraulic unit, with cables and oil
  • Superstructure with V arms
  • Stable bearing pads

Download

More info

TECHNICAL CHARACTERISTICS

  • Ultra-silent and very rapid lifting
  • Double-telescoping multi-function arms (715 - 1410 mm)
  • Automatic locking of the arms
  • Water-proof cassette
  • Hard-chrome plated cylinders
  • Corrosion-free guiding elements
  • Electronic control
  • Ecological oil
  • Pneumatic emergency descent
  • Safety device consisting of 2 independent hydraulic circuits
  • Extremely robust foolproof connection shaft, ensuring perfect levelling

Schéma Technique

V.12103E + V.20775E

Data sheet

Power supply230 V 3 ph / 50 Hz / 25 A - 400V 3 ph / 50 Hz / 16 A
Vehicle typePassenger Car, Light Duty Vehicle
Distance between cylinders1335 mm
Lifting capacity3500 kg
Cylinder stroke1950 mm
Effective height2020 mm
Lifting/lowering timeAbout 45 secs
Cylinder diameter2 x 123 mm
Foundation depth2615 mm
Motor pump unit3.0 kW
Superstructure typeWith V arms

Download
