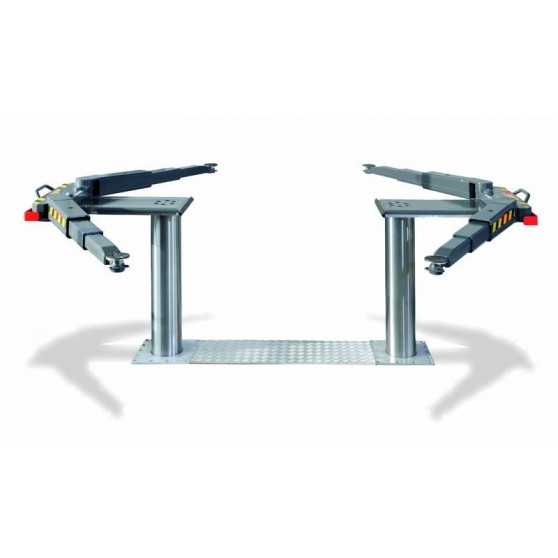

VISION III 5.5T - V arms (adjustable in width)

V.12399E + V.20773E

Passenger Car Light Duty Vehicle

VISION III 5.5T: 1 Cassette (Ref. V.12399E) + 1 Superstructure (Ref. V.20773E)

More info Accessories Technical sheet Data sheet

Standard equipment

  • Cassette 1350 mm equipped with the hydraulic unit, with cables and oil
  • Superstructure with adjustable V arms
  • Stable bearing pads

Download

More info

TECHNICAL CHARACTERISTICS

  • Ultra-silent and very rapid lifting
  • Double-telescoping multi-function arms (715 - 1410 mm)
  • Automatic locking of the arms
  • Arm supports adjustable in width (1225 - 2800 mm)
  • Water-proof cassette
  • Hard-chrome plated cylinders
  • Corrosion-free guiding elements
  • Electronic control
  • Ecological oil
  • Pneumatic emergency descent
  • Safety device consisting of 2 independent hydraulic circuits
  • Extremely robust foolproof connection shaft, ensuring perfect levelling

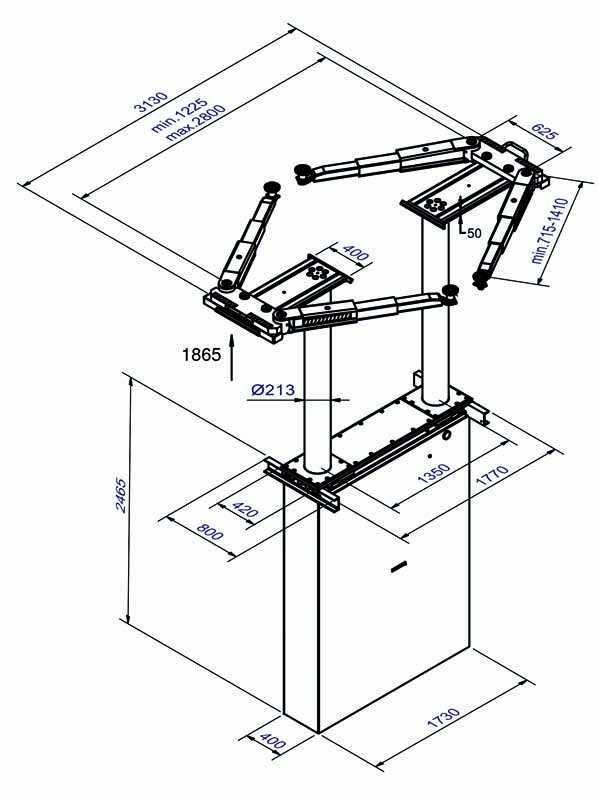

Technical sheet

V.12399 + V.20773

Data sheet

Power supply230 V 3 ph / 50 Hz / 16 A - 400 V 3 ph / 50 Hz / 16 A
Vehicle typePassenger Car, Light Duty Vehicle
Distance between cylinders1350 mm
Lifting capacity5500 kg
Cylinder stroke1865 mm
Effective height2000 - 2060 mm
Lifting/lowering timeAbout 45 secs
Cylinder diameter2 x 213 mm
Foundation depth2625 mm
Motor pump unit3.0 kW
Superstructure typeWith V arms
