VISION III 3.5T - "Sport" V arms (2285 mm between cylinders)

V.12276E + V.20777E

Passenger Car Light Duty Vehicle

VISION III 3.5T: 1 Cassette (Ref. V.12276E) + 1 Superstructure (Ref. V.20777E)

Other inground lift with V arms (2285 mm between cylinders)

"Universal" with Ø120/95/135 pads
Ref. V.12276E + V.21068E

Other inground lift with V arms (2600 mm between cylinders)

Min. height 70 mm
Ref. V.12107E + V.20786E

Min. height 90 mm
Ref. V.12107E + V.20787E

Other inground lift with V arms (adjustable in width)

Min. height 70 mm
Ref. V.12275E + V.20780E

Min. height 95 mm
Ref. V.12275E + V.20788E

Other inground lift

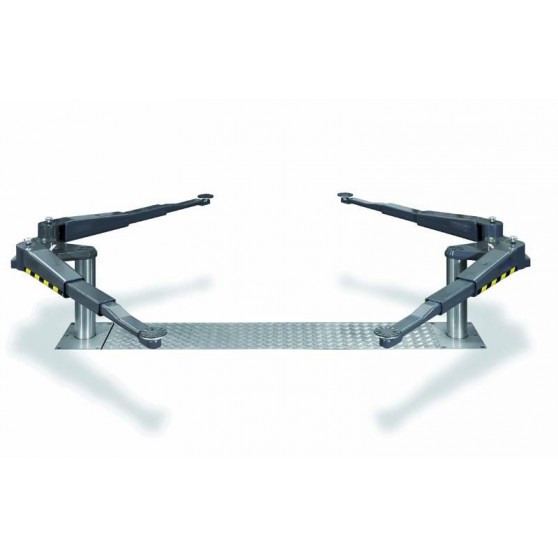

VISION III 3.5T - ADJUSTABLE PLATFORMS

VISION III 5T - V ARMS

More info Accessories Technical sheet Data sheet

Standard equipment

  • Cassette 2265 - 2285 mm equipped with the hydraulic unit (cylinders 1950 mm), with cables and oil
  • Superstructure with ‘Sport’ arms
  • Stable bearing pads Ø120/70/95

Download

More info

TECHNICAL CHARACTERISTICS

  • Ultra-silent and very rapid lifting
  • Double-telescoping multi-function arms (710 - 1443 mm)
  • Automatic locking of the arms
  • Water-proof cassette
  • Hard-chrome plated cylinders
  • Corrosion-free guiding elements
  • Electronic control
  • Ecological oil
  • Pneumatic emergency descent
  • Safety device consisting of 2 independent hydraulic circuits
  • Extremely robust foolproof connection shaft, ensuring perfect levelling

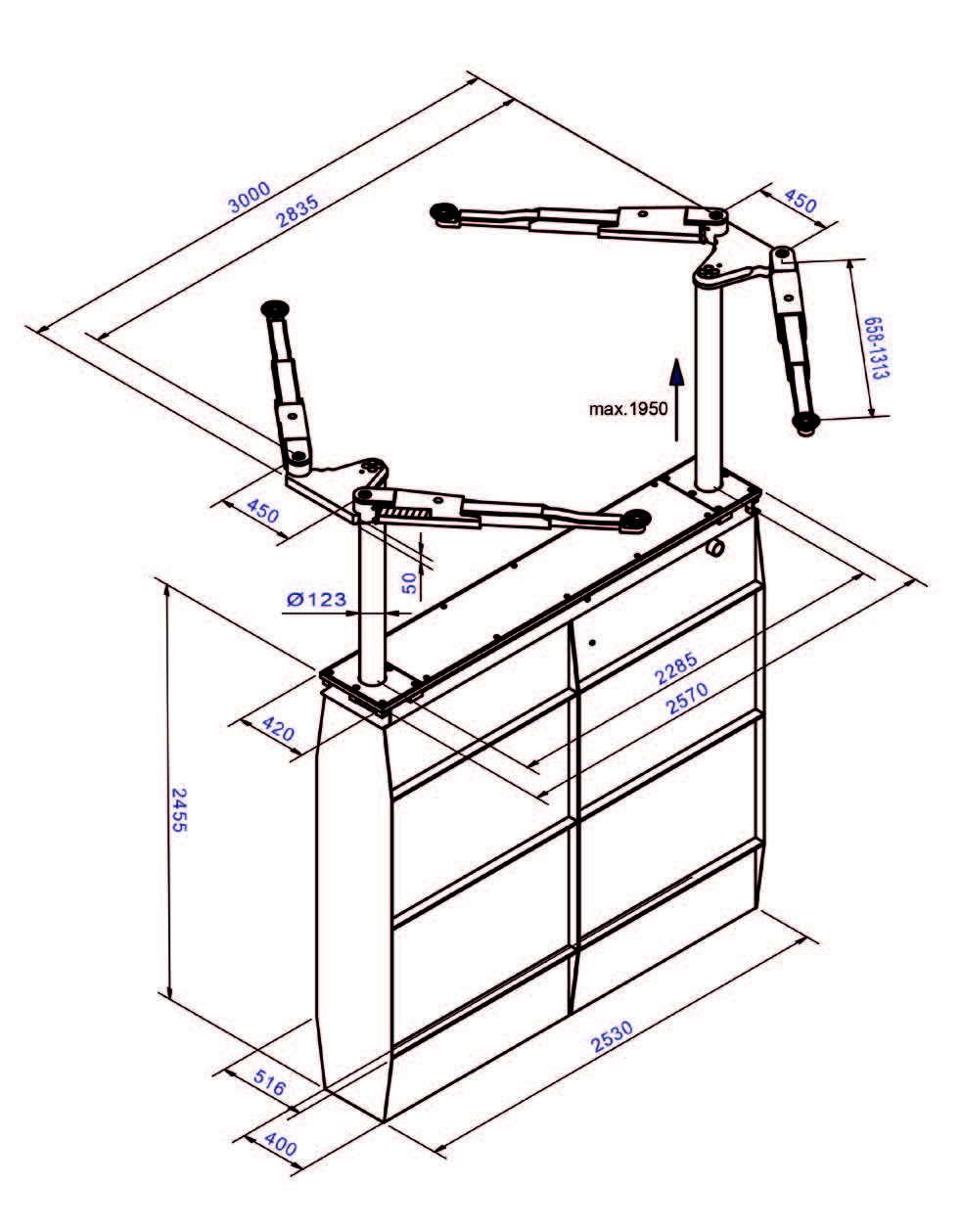

Schéma Technique

V.12276E + V.20777E

Data sheet

Power supply230 V 3 ph / 50 Hz / 25 A - 400V 3 ph / 50 Hz / 16 A
Vehicle typePassenger Car, Light Duty Vehicle
Distance between cylinders1335 mm
Lifting capacity3500 kg
Cylinder stroke1950 mm
Effective height2020 mm
Lifting/lowering timeAbout 30 secs
Cylinder diameter2 x 123 mm
Foundation depth2615 mm
Motor pump unit3.0 kW
Hauteur mini tampons70 mm
Superstructure typeWith V arms

Download
