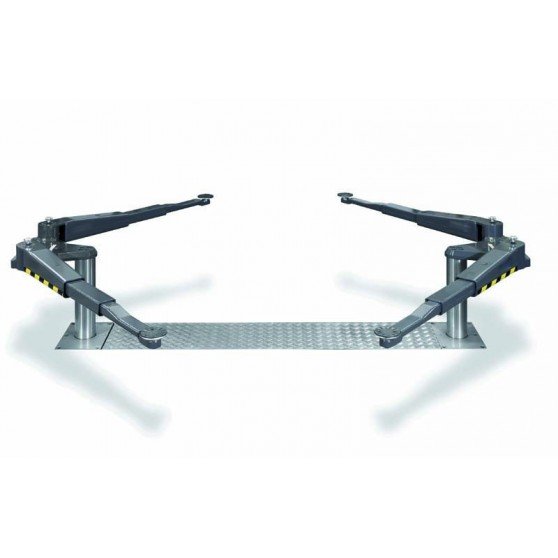

VISION III 3.5T - V arms - Min. height 70 mm (2600 mm between cylinders)

V.12107E + V.21102E

Passenger Car Light Duty Vehicle

VISION III 3.5T: 1 Cassette (Ref. V.12107E)+ 1 Superstructure (Ref. V.21102E)

Other 3.5T inground lift with V arms (2285 mm between cylinders)

"Sport" with Ø120/70/95 pads
Ref. V.12276E + V.21101E

Other 3.5T inground lift with V arms (adjustable in width)

Min. height 70 mm
Ref. V.12275E + V.20780E

Other inground lifts

VISION III 3.5T - ADJUSTABLE PLATFORMS

VISION III 5T - V ARMS

VISION III 5.5T - V ARMS

VISION III 6.5T - V ARMS

More info Accessories Technical sheet Data sheet

Standard equipment

  • Cassette 2600 mm equipped with the hydraulic unit, with cables and oil
  • Superstructure with arms - min. height 70 mm
  • Stable bearing pads

Download

More info

TECHNICAL CHARACTERISTICS

  • Ultra-silent and very rapid lifting
  • Double-telescoping multi-function arms (658 - 1313 mm)
  • Automatic locking of the arms
  • Water-proof cassette
  • Hard-chrome plated cylinders
  • Corrosion-free guiding elements
  • Electronic control
  • Ecological oil
  • Pneumatic emergency descent
  • Safety device consisting of 2 independent hydraulic circuits
  • Extremely robust foolproof connection shaft, ensuring perfect levelling

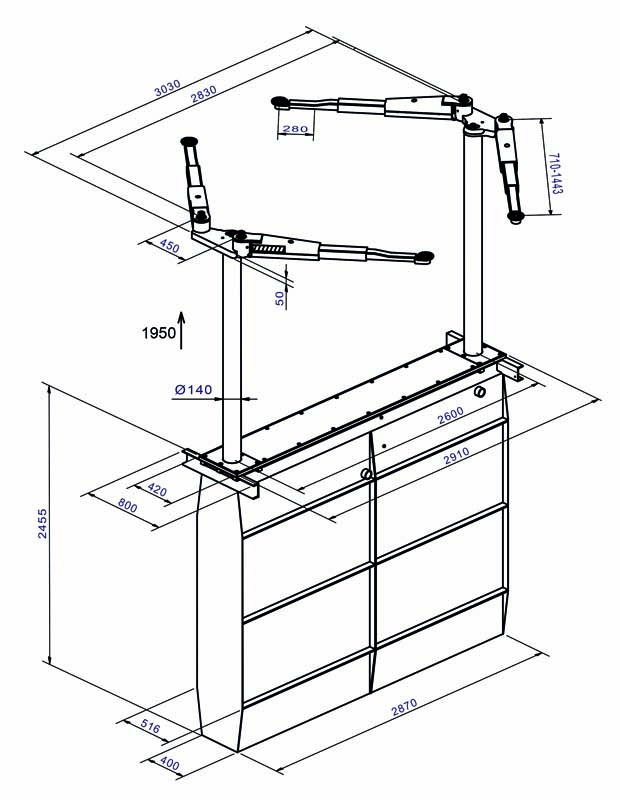

Technical sheet

V.12107E + V.21102E

Data sheet

Power supply230 V 3 ph / 50 Hz / 16 A - 400 V 3 ph / 50 Hz / 16 A
Vehicle typePassenger Car, Light Duty Vehicle
Distance between cylinders2600 mm
Lifting capacity3500 kg
Cylinder stroke1900 mm
Effective height1970 - 2035 mm
Lifting/lowering timeAbout 30 secs
Cylinder diameter2 x 123 mm
Foundation depth2625 mm
Motor pump unit3.0 kW
Superstructure typeWith V arms
