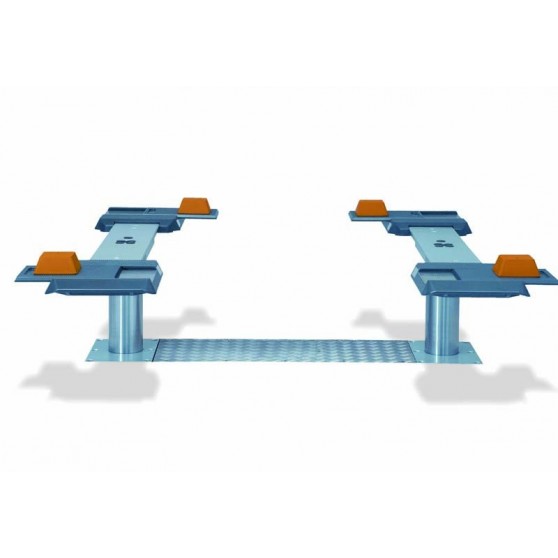

VISION III 3.5T - XY platforms - 1200-1800 mm

V.12275E + V.20829EXY

Passenger Car Light Duty Vehicle

VISION III 3.5T: 1 Cassette (Ref. V.12275E) + 1 Superstructure (Ref. V.20829EXY)

Other inground lift with XY platforms

1400 - 2000 mm XY platforms
Ref. V.12275E + V.20828EXY

1600 - 2200 mm XY platforms
Ref. V.12275E + V.20830EXY

Other inground lift with simple platforms

1200 - 1800 mm simple platforms
Ref. V.12275E + V.20829E

1400 - 2000 mm simple platforms
Ref. V.12275E + V.20828E

1600 - 2200 mm simple platforms
Ref. V.12275E + V.20830E

Other inground lifts

VISION III 3.5T -V ARMS

VISION III 5T - V ARMS

More info Accessories Technical sheet Data sheet

Standard equipment

  • Cassette 1315 - 1335 mm equipped with the hydraulic unit (cylinders 1950 mm), with cables and oil
  • Superstructure with 1200 - 1800 mm XY platforms
  • Stable support rubber blocks
  • XY platforms

Download

More info

TECHNICAL CHARACTERISTICS

  • Ultra-silent and very rapid lifting
  • Platforms adjustable in length: 1 200-1 800 mm
  • Water-proof cassette
  • Hard-chrome plated cylinders
  • Corrosion-free guiding elements
  • Electronic control
  • Ecological oil
  • Pneumatic emergency descent
  • Safety device consisting of 2 independent hydraulic circuits
  • Extremely robust foolproof connection shaft, ensuring perfect levelling

Schéma Technique

12275E XY-schéma

Data sheet

Power supply230 V 3 ph / 50 Hz / 25 A - 400V 3 ph / 50 Hz / 16 A
Vehicle typePassenger Car, Light Duty Vehicle
Distance between cylinders1335 mm
Lifting capacity3500 kg
Cylinder stroke1950 mm
Effective height2020 mm
Lifting/lowering timeAbout 30 secs
Cylinder diameter2 x 123 mm
Foundation depth2615 mm
Motor pump unit3.0 kW
Superstructure typeWith adjustable platforms

Download
