GALAXIE IV 5T - Hi-speed - Special Technical control - Surfaced-m.

412 9306D-PJX

Passenger Car Light Duty Vehicle

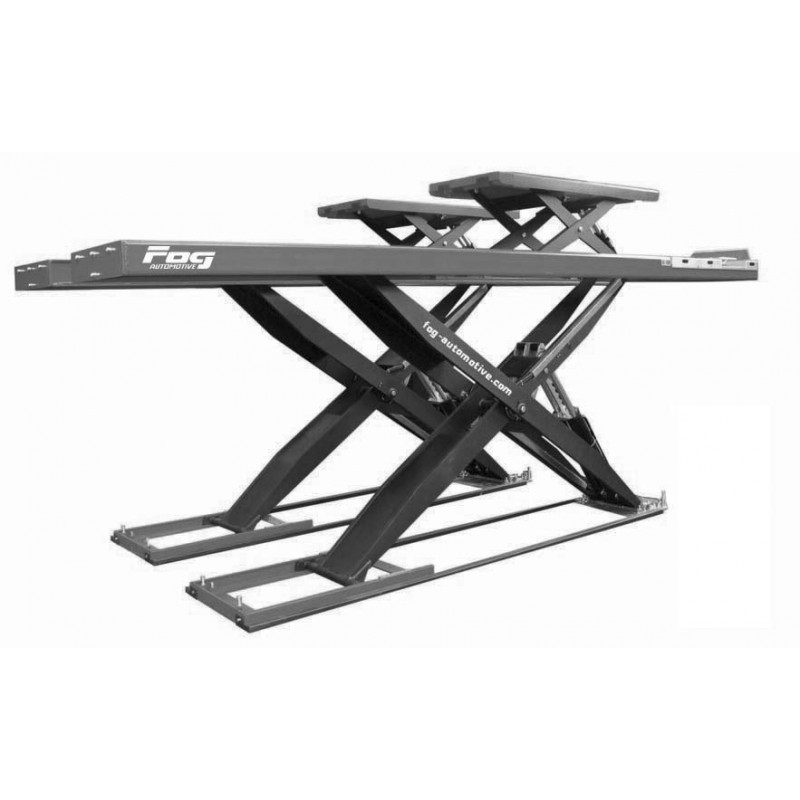

GALAXIE IV 5T - Big scissors lift, Hi-Speed with auxiliary lift table, surfaced-mounted version, with play detectors

Other 5T Special Technical Inspection

GALAXIE IV 5T - Big scissors lift, Hi-Speed with auxiliary lift table, recessed-mounted version, with play detectors
Ref. 412 9316D-PJX

Other available references

BIG SCISSORS 4.5T FLAT TRACKS

BIG SCISSORS 4.5T - WHEEL ALIGN.

BIG SCISSORS 5T - WHEEL ALIGN.

BIG SCISSORS 5T - TECHNICAL CONTROL

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS - MAIN LIFT

  • Capacity of the main lift: 5000 kg
  • Min. height of tracks: 330 mm
  • Tracks width: 700 mm
  • Tracks length: 5200 mm
  • Max. lifting height of the main lift: 2200 mm
  • Loaded main lift lifting/lowering time: 22/30 secs

TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE

  • Capacity of the auxiliary lift table: 4000 kg
  • Max. lifting height of the auxiliary lift table: 565 mm
  • Platforms length of the auxiliary lift table: 1500-1940 mm
  • Loaded auxiliary lift lifting/lowering time: 9/9 secs

Schéma Technique

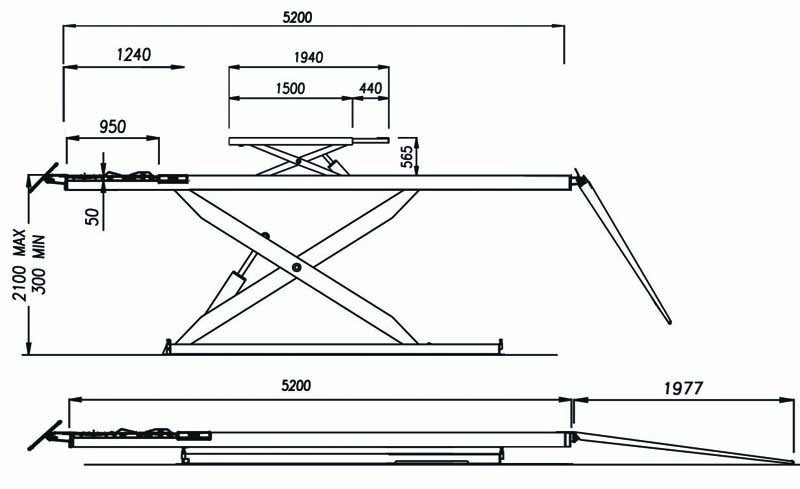

Side view

4129306D-PJX-schéma vue côté

Top view

Data sheet

Weight700 kg
Power supply230 V 3 ph / 50 Hz / 16.4 A - 400 V 3 ph / 50 Hz / 9.5 A
Power1,8 kW
Vehicle typePassenger Car, Light Duty Vehicle
Hydraulic pressure210 bars
Main lift capacity5000 kg
Auxiliary lift capacity4000 kg
Lifting/lowering timeLoaded main lift lifting/lowering time: 22 / 30 secs - Loaded auxiliary lift lifting/lowering time: 9 / 9 secs
Auxiliary liftWith
Aligner front housingWithout
Play detectorsWith

Download
