GALAXIE IV 4.5T - Auxiliary lift - For wheel alignment - Recessed-m.

412 9312D

Passenger Car Light Duty Vehicle

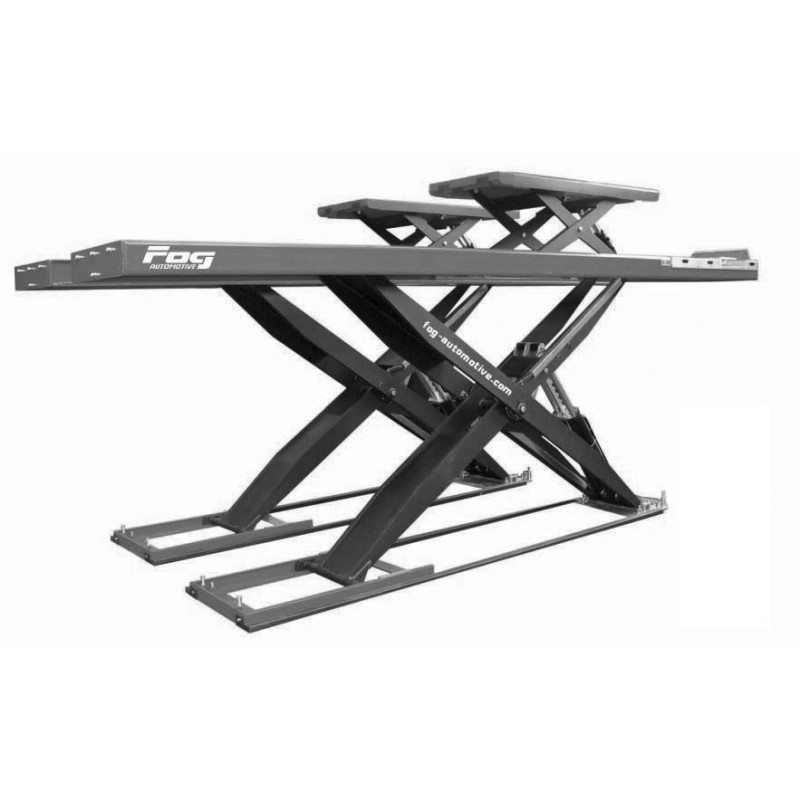

GALAXIE IV 4.5T - Big scissors lift with auxiliary lift table, recessed-mounted version, special wheel alignment

Other 4,5T special wheel alignment

GALAXIE IV 4.5T - Big scissors lift with auxiliary lift table, surfaced-mounted version, special for wheel alignment
Ref. 412 9302D

Autres références disponibles

BIG SCISSORS 4.5T - FLAT TRACKS

BIG SCISSORS 5T - FLAT TRACKS

BIG SCISSORS 5T - WHEEL ALIGN.

BIG SCISSORS 5T - TECHNICAL CONTROL

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS - MAIN LIFT

  • Ideal for wheel alignment.
  • Excellent clearance around and under the vehicle.
  • Tracks with hydraulic synchronization without connection shaft for practical access to accessories such as oil collectors and support jacks.
  • « Deadman’s Handle » type of control.
  • Capacity of the main lift: 4 500 kg
  • Min. height of tracks: 0 mm
  • Tracks width: 700 mm
  • Tracks length: 4 800 mm
  • Max. lifting height of the main lift: 2 100 mm
  • Loaded main lift lifting/lowering time: 30 / 30 secs

TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE

  • Capacity of the auxiliary lift table: 4000 kg
  • Max. lifting height of the auxiliary lift table: 565 mm
  • Platforms length of the auxiliary lift table: 1500-1940 mm
  • Loaded auxiliary lift lifting/lowering time: 9/9 secs

Schéma Technique

Side view

4129312D-schéma vue côté

Top view

Data sheet

Weight700 kg
Power supply230 V 3 ph / 50 Hz / 16.4 A - 400 V 3 ph / 50 Hz / 9.5 A
Power1,8 kW
Vehicle typePassenger Car, Light Duty Vehicle
Operating pressure8-10 bars
Hydraulic pressure210 bars
Main lift capacity4500 kg
Auxiliary lift capacity4000 kg
Lifting/lowering timeLoaded main lift lifting/lowering time: 30 / 30 secs - Loaded auxiliary lift lifting/lowering time: 9 / 9 sec
Auxiliary liftWith
Aligner front housingWith
Play detectorsWithout

Download
