GALAXIE IV 4.5T - Flat tracks - Auxiliary lift

412 9311D

Passenger Car Light Duty Vehicle

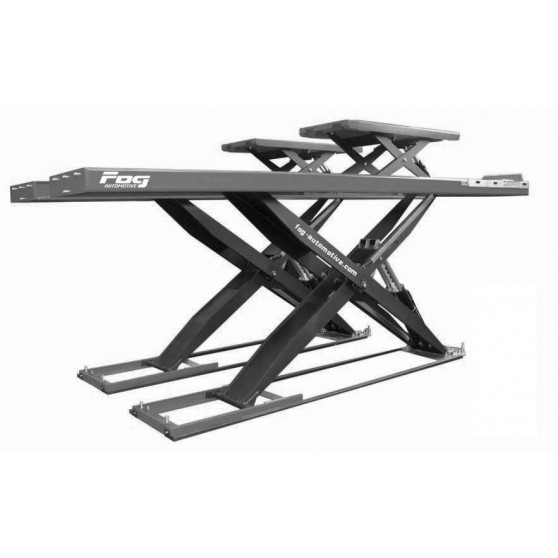

GALAXIE IV 4.5T - Big scissors lift - flat tracks with auxiliary lift table, recessed-mounted version

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS - MAIN LIFT

  • Excellent clearance around and under the vehicle.
  • Tracks with hydraulic synchronization without connection shaft for practical access to accessories such as oil collectors and support jacks.
  • « Deadman’s Handle » type of control.
  • Capacity of the main lift: 4 500 kg
  • Min. height of tracks for recessed-mounted lift: 0 mm
  • Tracks width: 700 mm
  • Tracks length: 4 800 mm
  • Max. lifting height of the main lift: 2 100 mm
  • Loaded main lift lifting/lowering time: 30 / 30 secs

TECHNICAL CHARACTERISTICS - AUXILIARY LIFT TABLE

  • Capacity of the auxiliary lift table: 4 000 kg
  • Max. lifting height of the auxiliary lift table: 565 mm
  • Platforms length of the auxiliary lift table: 1 500-1 940 mm
  • Loaded auxiliary lift lifting/lowering time: 9 / 9 secs





Schéma Technique

Side view

4129311D-schéma vue côté

Top view

Data sheet

Weight700 kg
Power supply230 V 3 ph / 50 Hz / 16.4 A - 400 V 3 ph / 50 Hz / 9.5 A
Power4 kW
Vehicle typePassenger Car, Light Duty Vehicle
Hydraulic pressure210 bars
Main lift capacity4500 kg
Auxiliary lift capacity4000 kg
Lifting/lowering timeLoaded main lift lifting/lowering time: 30/30 secs - Loaded auxiliary lift lifting/lowering time : 9/9 secs
Auxiliary liftWith
Aligner front housingWithout
Play detectorsWithout

Download
