Jeu de Set of 4 Diapason V 5.5T View larger

DIAPASON V 5.5T

454 9605

Light Duty Vehicle Heavy Duty Vehicle

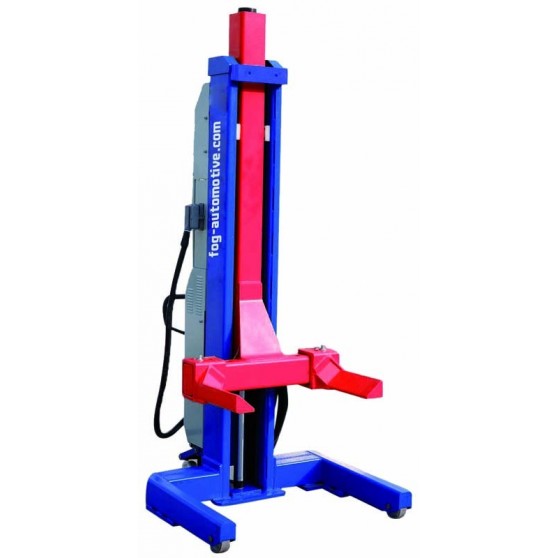

DIAPASON V 5.5T - 4 electro-hydraulic mobile column lifts with adjustable forks (Réf. 454 9605-4)

More info Accessories Technical sheet Data sheet

Download

More info

TECHNICAL CHARACTERISTICS

  • Forks adjustable from 500 to 1120 mm
  • Does not require civil construction
  • Optimum accessibility under the vehicle
  • Control unit with stop button on each column
  • Column synchronization and managment of the number of columns from the master column
  • Lifting heights permanently displayed and monitored on the screen
  • Double safety system
  • Lifting time: 120 secs
  • Max. effective height: 1 700 mm

Schéma Technique

Side view

Top view

Data sheet

Height2260 mm
Width1200 mm
Depth1100 mm
Weight480 kg per column
Power supply400 V 3 ph / 50 Hz
Power2,2 kW per column
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Lifting capacity5500 kg

Download
