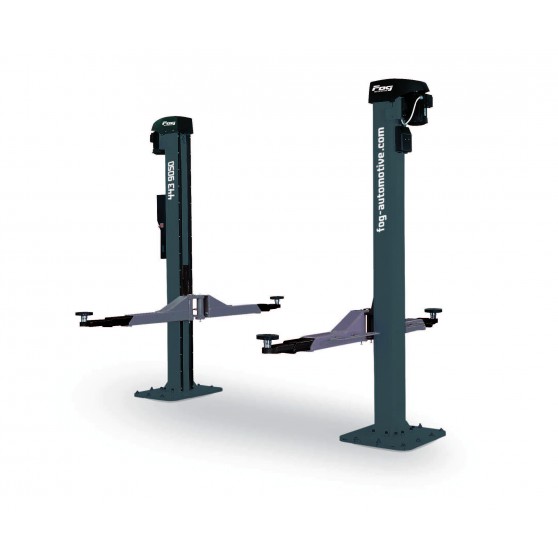

AZUR 5T - 2 motors lift
443 9050
Passenger Car Light Duty Vehicle
2 motors 2 electro-mechanical post lift (capacity 5T), without base frame, with cable kit for ground synchronization
Other electro-mechanical lift references
Other hydraulic lift references
More info
TECHNICAL CHARACTERISTICS
- No base frame between columns (arch-frame)
- Designed for passenger cars, 4x4s and light duty vehicles
- 2 motors with high starting torque
- Programmable end stop
- Lifting capacity: 5 000 kg
- Min. lifting height: 140 - 170 mm
- Great width between columns: 3 185 - 3 385 mm
- Max. lifting height: 2 040 - 2 070 mm
- Interchangeable symmetrical arms with 3 extensions: 957 - 2 138 mm
- Loaded lift lifting/lowering time: 55 / 55 secs
- Height of lift without arch-frame: 2 908 mm
- Height of the lift with arch-frame: 3 495 - 5 270 mm
Technical sheet
Top view Side view
Data sheet
| Weight | 490 kg |
| Power supply | 230 V 3 ph / 50 Hz / 19 A - 400 V 3ph / 50 Hz / 11A |
| Power | 2 x 2.8 kW |
| Vehicle type | Passenger Car, Light Duty Vehicle |
| Lifting capacity | 5000 kg |
| Lifting/lowering time | 55 / 55 secs |
| Installation type | Without base frame |
