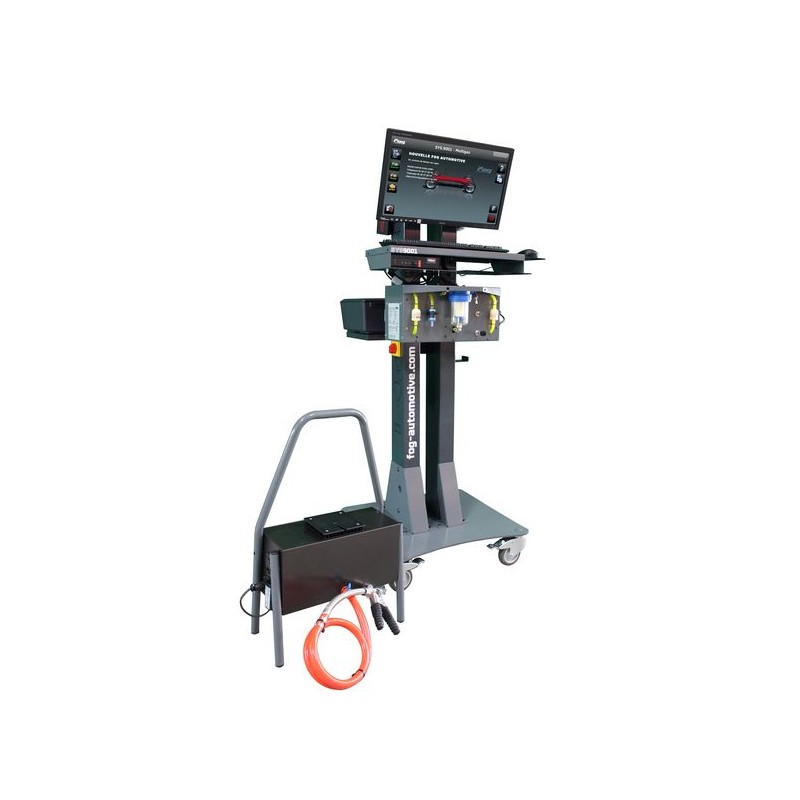

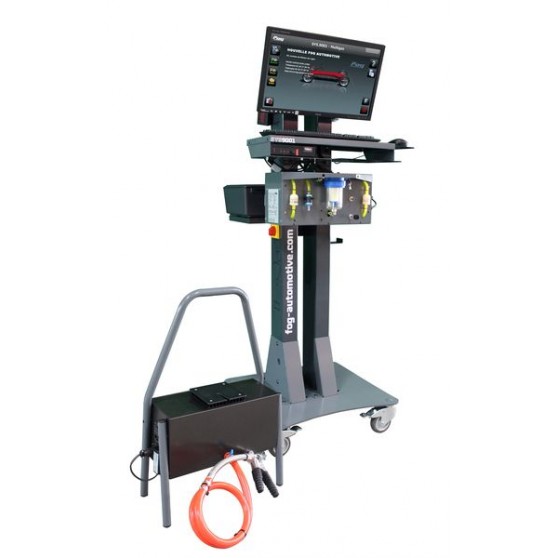

Emission tester combo with touch-screen - Bluetooth version

SYS.9001BT-4T

Passenger Car Light Duty Vehicle

Emission tester combo with touch-screen, consisting of a 4-gas
analyser and a Bluetooth opacimeter

Other available references

Emission tester combo with touch-screen, consisting of a 4-gas analyser and a wired opacimeter
Ref. SYS.9001-4T

Emission tester combo with touch-screen, consisting of a 4-gas analyser, a wired opacimeter and a Bluetooth EOBD reader
Ref. SYS.9001-4T-CT

Emission tester combo with touch-screen, consisting of a 4-gas analyser, a Bluetooth opacimeter and a Bluetooth EOBD reader
Ref. SYS.9001BT-4T-CT

More info Accessories Data sheet

Standard equipment

  • 1 4-gas analyser
  • 1 wired or Bluetooth opacimeter
  • 1 Bluetooth EOBD reader
  • 1 temperature probe and Bluetooth rev counter jack
  • 1 touch screen 24’’
  • Linked by WiFi to a computer system (PC, keyboard, mouse)
  • WiFi printer

Optional equipment

  • Extension
  • 5th gas (NOx) kit

Download

More info

TECHNICAL CHARACTERISTICS

  • 1 4-gas analyser (5th gas as an option)
  • 1 wired or Bluetooth opacimeter
  • 1 Bluetooth EOBD reader, for collecting the engine speed and oil temperature
  • 1 touch screen 24’’
  • Linked by WiFi to a computer system (PC, keyboard, mouse)
  • WiFi printer

SIMPLIFIED INTERFACE

  • The brand, model, type of engine (diesel or petrol) are pre-selected thanks to the data from the registration certificate.
  • The program obtains the oil temperature and rev counter datas via of the EOBD reader.
  • The touch-screen linked to a teaching program increases the speed of your interactions.

REGULATORY METHODS AND MEASUREMENTS

After recovering all the vehicle’s information, the emission tester combo guides you and measures:

  • For the gas analyser : the rate of the CO and the lambda, according to engine types (standard or
    low-emission) and the entry into circulation’s date of the vehicles.
  • For the opacimeter: the opacity of the exhaust fumes, taking into account the different engine types (naturally aspirated, turbo-combustion) and the entry into circulation’s date of the vehicles.
  • For the EOBD reader : the proper functionning of the MIL indicator and the recovery of default codes.
  • All the results produced by these devices are transmitted to the centre’s computer system using the OTCLAN communications protocol in force.

UPDATES AND REMOTE ASSISTANCE

  • The FOG UPDATE system means that you automatically benefit from the latest updates. On each start-up, it connects to the FOG server to check whether new functionalities have been implemented.
  • SYS.9001 is a connected device that can be controlled remotely. This means that, if necessary, you can
    benefit from a diagnosis by an FOG expert who can answer your questions and further your training. In this way you can increase your workshop’s profitability day by day.

Data sheet

Height1700 mm
Width600 mm
Depth650 mm
Power supply230V 50Hz
Vehicle typePassenger Car, Light Duty Vehicle
FlagMadeInFog
Opacimeter typeBluetooth opacimeter
EOBD readerWithout

Download
