Automatic - Up to 56" (with extensions) View larger

Associated products :

Automatic - Up to 56" (with extensions)

UTM.856PROA

Light Duty Vehicle Heavy Duty Vehicle

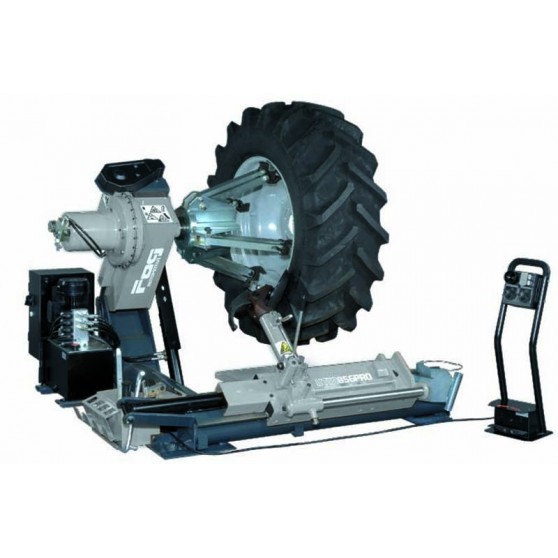

Electro-hydraulic tyre changer with automatic carriage - up to 56’’ (with extensions)

Other VI tyre changer

Electro-hydraulic tyre changer with manual carriage - up to 26’’
Ref. UTM.826PRO

Electro-hydraulic tyre changer with manual carriage - up to 56’’ (with extensions)
Ref. UTM.856PRO

Other available tyre changer

DP RANGE

UTM RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 Rim pliers
  • 1 dismounting lever for ring wheels
  • 1 grease bucket and 1 brush
  • 1 mounting/dismounting aid lever

Optional equipment

  • Pneumatic bead pressing device.
  • Extensions to increase the locking capacity to 56’’
  • Tubeless roller for truck and bus wheels

Download

More info

TECHNICAL CHARACTERISTICS

  • Universal self-centring chuck and locking capacity of 14’’ – 46’’ - up to 56’’ (with extensions).
  • 2-speed anticlockwise or clockwise rotation of the chuck.
  • Carriage with hydraulic movement and tool-holder arm with automatic side translation.
  • Mobile control unit.

Schéma Technique

Data sheet

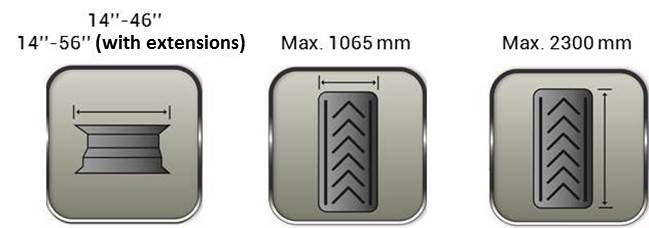

Rim diameter14’’ – 46’’ - up to 56’’ (with extensions)
Wheel width1065 mm max.
Wheel diameter2300 mm max.
Height1550 mm
Width2450 mm
Depth2300 mm
Weight762 kg
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Operating pressure8-10 bars

Download
