UTM.826PRO

Light Duty Vehicle Heavy Duty Vehicle

Electro-hydraulic tyre changer with manual carriage - up to 26’’

Other VI tyre changer

Electro-hydraulic tyre changer with manual carriage - up to 56’’ (with extensions)
Ref. UTM.856PRO

Electro-hydraulic tyre changer with automatic carriage - up to 56’’ (with extensions)
Ref. UTM.856PROA

Other available tyre changer

DP RANGE

UTM RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 Rim pliers
  • 1 dismounting lever for ring wheels
  • 1 grease bucket and 1 brush
  • 1 mounting/dismounting aid lever

Optional equipment

  • Tubeless roller for truck and bus wheels
  • 1 set of Jaws for alloy rims with special plastic inserts

Download

More info

TECHNICAL CHARACTERISTICS

  • Universal self-centring chuck
  • Anticlockwise or clockwise rotation of the chuck
  • Carriage with hydraulic movement and tool-holder arm with manual translation
  • Mobile control unit

Schéma Technique

Data sheet

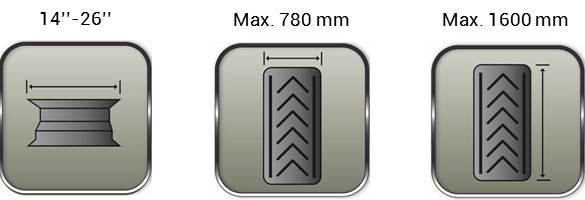

Rim diameter14" - 26"
Wheel width780 mm max.
Wheel diameter1600 mm max.
Height1220 mm
Width2222 mm
Depth2000 mm
Weight555 kg
Power supply400 V 3ph 50Hz
Vehicle typeLight Duty Vehicle, Heavy Duty Vehicle
Operating pressure8-10 bars

Download
