Special "Runflat"

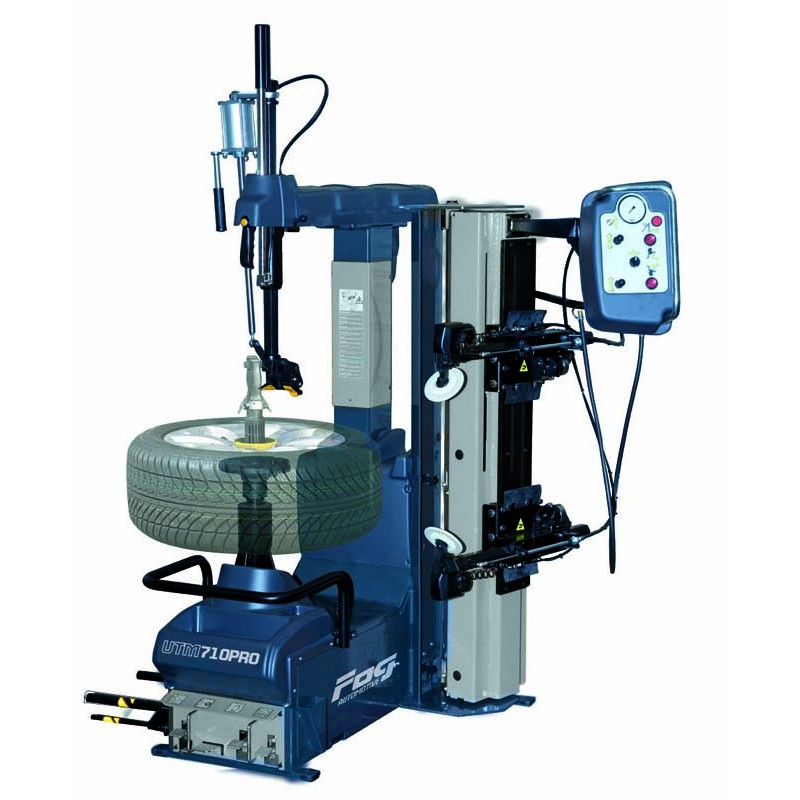

UTM.710PRO

Passenger Car Light Duty Vehicle

Super-automatic tyre changer up to 28’’, with a Leverless system - Spécial “Runflat“ (Good-Year RunOnFlat, Pirelli P ZERO, Bridgestone RFT, Michelin ZP, Continental SSR, Dunlop DSST)

Other UTM tyre changer

Variable-speed automatic tyre changer
Ref. UTM.445PRO

Variable speed automatic tyre changer with a Leverless rod and a mounting / dismounting aid
Ref. UTM.445TPRO

Fully automatic tyre changer with hydraulic operation
Ref. UTM.730PRO

Other available tyre changer

DP RANGE

TRUCK RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 pneumatic lift
  • 2 bead pressing clamps
  • 1 inflation system
  • 1 tool protection kit
  • 1 core-puller
  • 1 plastic lever for removing the weights
  • 1 valve-puller
  • 1 ring for concave rims
  • 1 set of centring cones and locking handle

Optional equipment

  • 1 adapter for concave rims and rims with no central hole
  • 1 quick inflation system
  • 1 quick clamping handle
  • 1 kit for UHP and Runflat wheels

Download

More info

TECHNICAL CHARACTERISTICS

  • Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).
  • Automatically adjustable self-centring turntable rotation (6-15 rpm). The torque remains at the best ratio also at maximum speed.
  • All operating controls, for easier “dynamic” bead breaking, independent or simultaneous, of both the tyre beads by means of its telescopic system with double disk.
  • New controlled penetration system gives effective bead breaking on the most difficult wheels (Patent Pending).
  • Ergonomic wheel lift, supplied as standard, allows easy positioning off all wheels on turntable. The pedal unit allows the operator to always work in the same position when operating the wheel lift.
  • Machine working height designed for perfect ergonomics with all kind of wheels.

Schéma Technique

Data sheet

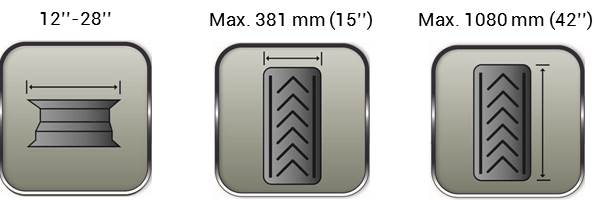

Rim diameter12" - 28"
Wheel width15" (381 mm) max.
Wheel diameter42" (1080 mm) max.
Height2185 mm
Width2018 mm
Depth1785 mm
Weight400 kg
Power supply230 V 1ph 50 Hz
Vehicle typePassenger Car, Light Duty Vehicle
Operating pressure8-10 bars
Wheel locking typeLocking by chuck

Download
