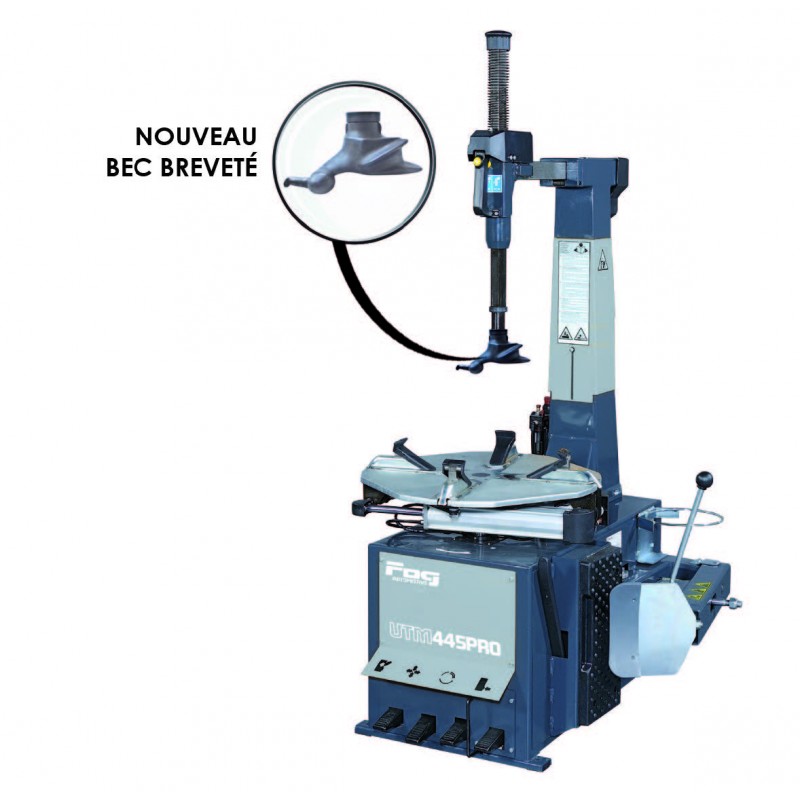

Automatic swing arm for minimum space requirements

UTM.445PRO

Passenger Car Light Duty Vehicle

Variable-speed automatic tyre changer

Other UTM tyre changer

Variable speed automatic tyre changer with a Leverless rod and a mounting / dismounting aid
Ref. UTM.445TPRO

Super-automatic tyre changer up to 28’’, with a Leverless system
Ref. UTM.710PRO

Fully automatic tyre changer with hydraulic operation
Ref. UTM.730PRO

Other available tyre changer

DP RANGE

TRUCK RANGE

More info Accessories Technical sheet Data sheet

Standard equipment

  • 1 inflation gun
  • 5 protections for standard tool-heads
  • 8 protections for jaws
  • 2 protections for the bead-breaker
  • 1 protection kit for tyre-changer lever
  • 1 rim edge protection

Optional equipment

  • 1 set of 4 adapters for 4’’ reduction
  • 1 set of 4 motorbike adapters
  • 1 quick-change device for tool-head
  • 1 tool-head for rims with convex spokes
  • 1 pneumatic lift
  • 1 kit for UHP and Runflat wheels

Download

More info

TECHNICAL CHARACTERISTICS

  • Pneumatic swinging movement of the column to the right and of the arm, allowing a significant reduction in space requirements.
  • Self-centring 4 jaws turntable with 2 clamping cylinders (dual-control flange) for perfect centring of the rim.
  •  Two pneumatic clamping jacks.
  • Simultaneous pneumatic horizontal vertical arm locking.
  • High-performance double effect stainless steel bead-breaker cylinder (31 kN).
  • Powerful bead breaker with articulated blade and enlarged wheel-support.
  • Adjustable bead-breaker blade angle.
  • Pneumatic safety valve in accordance with EC standards.
  • Pressure regulator with lubricator and water filter.
  • Plastic protection to prevent damage to aluminium rims.
  • Removable pedals unit.
  • Turntable can be rotated in 2 directions.
  • Electric inverter with acceleration ramp.

Schéma Technique

Data sheet

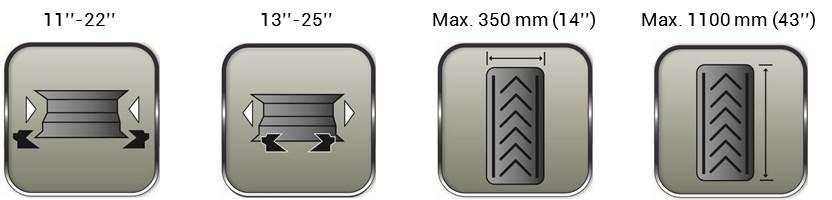

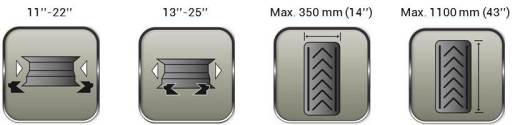

Rim diameter11" - 22"
Rim width13" - 25"
Wheel width14" (350 mm) max.
Wheel diameter43" (1100 mm) max.
Height2100 mm
Width1340 mm
Depth1640 mm
Weight280 kg
Power supply230 V 1 ph / 50 Hz
Vehicle typePassenger Car, Light Duty Vehicle
Operating pressure8-10 bars
Wheel locking typeLocking by jaw
