This product is no longer in stock
- 1 inflation gun
- 3 protections for standard tool-heads
- 4 protections for jaws
- 2 protections for the bead-breaker
- 1 tyre changing lever
- 1 grease bucket and 1 brush
- 1 set of 4 adapters for 4’’ reduction
- 1 set of 4 motorbike adapters
- 1 quick-change device for tool-head
- 1 tool-head for rims with convex spokes
- Pneumatic tilting movement of the column and of the arm.
- Self-centring 4 jaws turntable for perfect centring of the rim.
- Two pneumatic clamping jacks.
- Simultaneous pneumatic horizontal vertical arm locking.
- High-performance double effect bead breaker cylinder (31 kN).
- Powerful bead breaker with articulated blade and enlarged wheel-support.
- Pneumatic safety valve in accordance with EC standards.
- Pressure regulator with lubricator and water filter.
- Plastic protection to prevent damage to aluminium rims.
- Removable pedals unit.
- Turntable can be rotated in 2 directions.

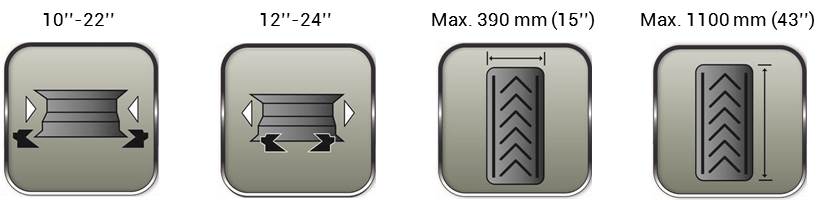

|Rim diameter||10" - 22"|
|Rim width||12" - 24"|
|Wheel width||15" (390 mm) max.|
|Wheel diameter||43" (1100 mm) max.|
|Power supply||400V 3ph 50Hz|
|Vehicle type||Passenger Car, Light Duty Vehicle|
|Operating pressure||8-10 bars|
|Rotation speed number||1 speed|
